House plan Samba

Usable area: 125.67 m2   /   The cost of the realization: 124 010 EUR

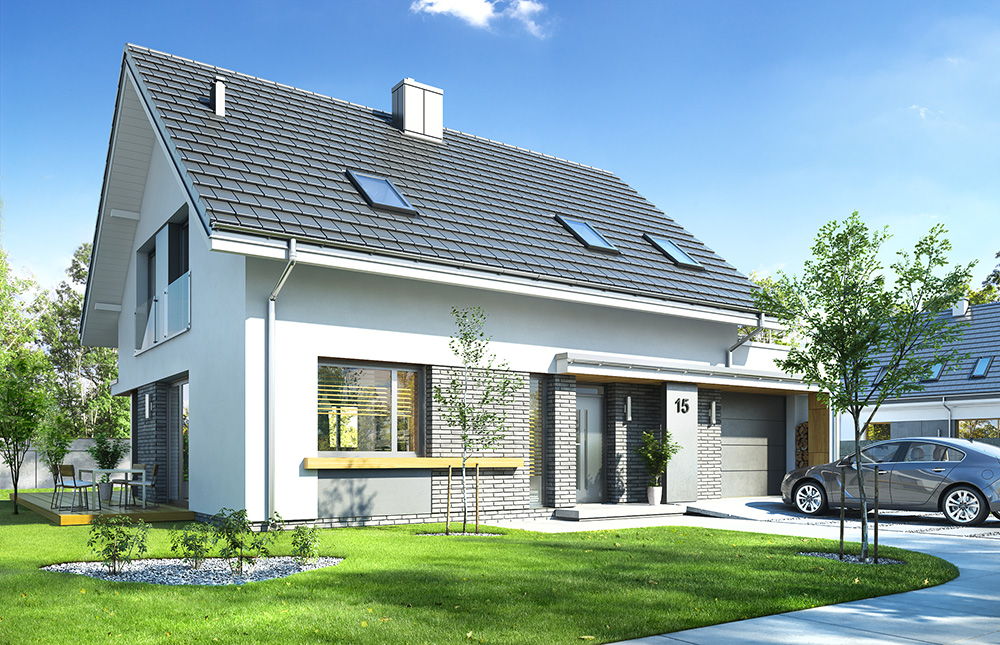

Projekt domu Samba - front

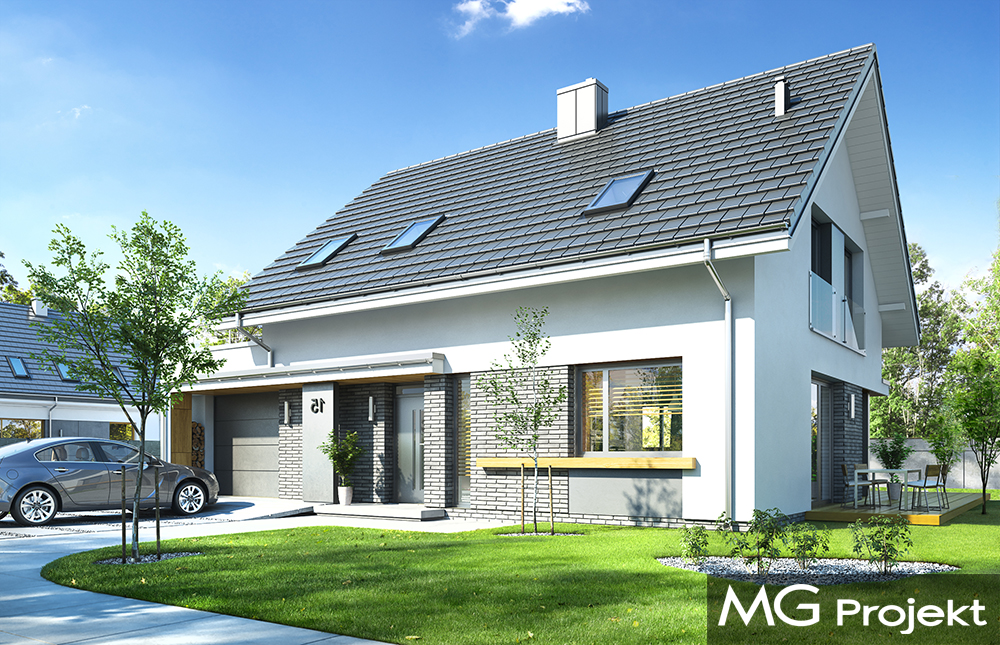

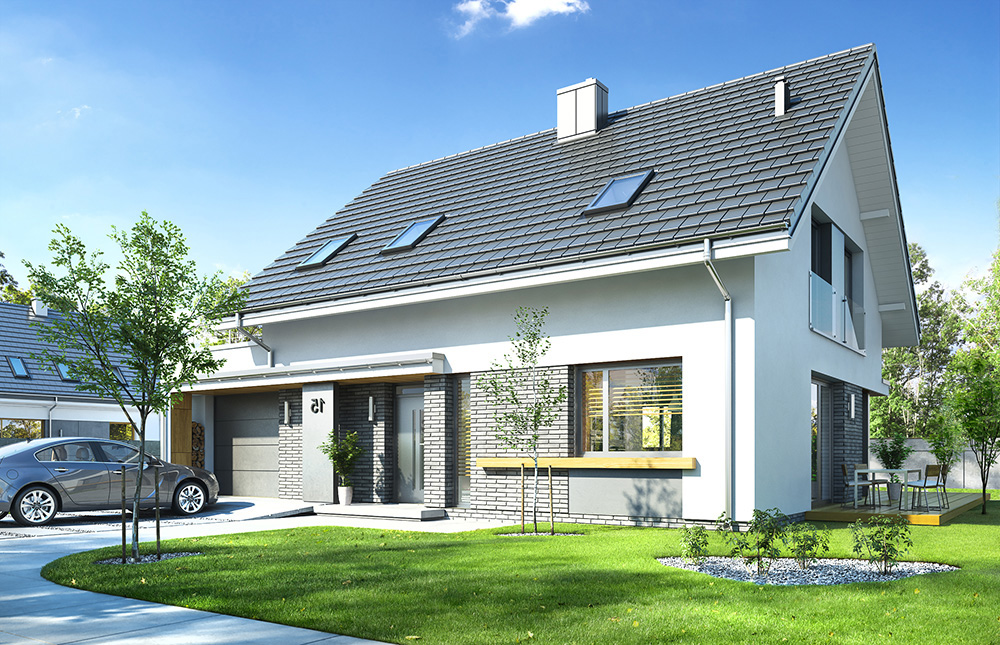

Show mirror image

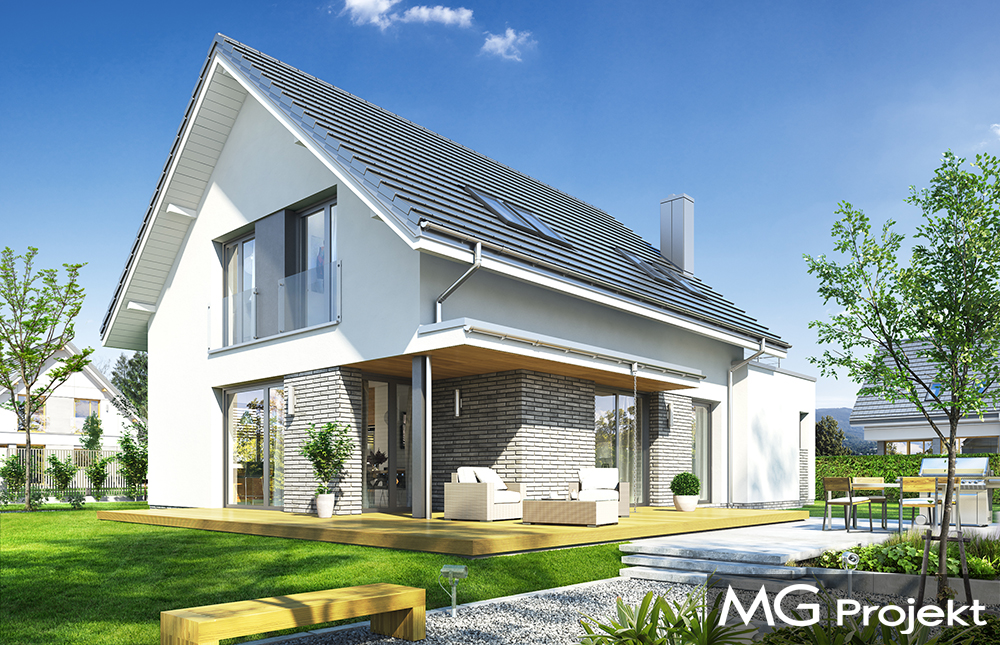

Samba house plan is one of the projects from the popular Party (Party, Party 2, Fokstrot, Biba, Salsa, Tango). Samba is a one-family single-family house with an attic designed for a family of four and five people. The cottage is inexpensive to build, has a simple structure and very attractive architecture. The rectangular shape covered with a gable roof adorns and enriches: an entrance arcade with an indentation in a block and a roof, a single-storey garage, and a cut-out corner on the garden side - an arcade and an extended terrace roof. The indentation in the block can be the same as in the design, or it can be easily built and enlarged the same living room. Appropriately selected finishing materials and colours give "Samba" a modern look. We enter the house through a representative door with a shutter. The door was designed in a niche, with a platform covered with a protruding roof. The roof ends with a clever wood storage for the fireplace next to the garage door. From the entrance hall we go straight in front of wide glass doors to the lobby and the living room, or to the sides: to the locker room and garage, or to the other side through the pantry to the kitchen. In this way, proper communication is ensured by entering the house - on foot or by car, with shopping. In the hall we have a slightly separated from the rest of the interior stairs, the entrance to an additional room, and a wide passage to the living space, with living room, dining room and kitchen. The central place of the interior is a wall with a fireplace, around which the rooms were designed. In the living room we also have a TV wall, a place for leisure furniture, a dining room with access to the terrace and garden, and a nice kitchen separated by a peninsula, connected with a pantry. Behind the garage, there is a boiler room. In the attic, three bedrooms have been designed, and a nice bathroom with a bath and shower. Parents' bedroom has its own dressing room - children's bedrooms have built-in wardrobes. Samba, despite its small size, is a very comfortable home for a full family. Attractive design, functional interior, energy-saving solutions, and an inexpensive cost of construction and subsequent operation should convince many investors to this project.

Specifications:
  • Cubature: 578 m3 / 20409,18 ft3
  • Built-up area: 124,37 m2 / 1338,22 ft2
  • Total area: 190,44 m2 / 2049,13 ft2
  • Net area: 132,49 m2 + garage 20,65 m2 / 1425,59 ft2 + garage 222,19 ft2
  • Usable area: 125,67 m2 /  1352,21 ft2
  • Building dimensions: 14,41 x 9,56 m / 47,26 x 31,36 ft
  • Plot dimensions: 22,14 x 17,56 m / 72,62 x 57,60 ft
  • Height of the building: 8,44 m (8,64 with foundation) / 27,68 (28,34 with foundation)
  • Roof area: 161,56 m2 + terrace 36 m2 / 1738,39 + terrace 387,36 ft2
  • Roof slope: 40 degrees
  • Height of rooms: 2,7 m / 8,86 ft
Materials:
  •     Foundations - concrete bench and foundation walls with concrete blocks
  •     External walls – brick walls – porotherm 25 blocks + polystyrene + thin-layer plaster
  •     Ceiling - teriva
  •     Elevation - thin-layer plaster on polystyrene
  •     Roof - ceramic tile




The costs of implementing:
The raw state open 36 800,00 EUR
The raw state closed 59 050,00 EUR
The cost of finishing works 64 970,00 EUR
Execution of turnkey home 124 010,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Samba - detail drawings

House plan Samba - detail drawings mirror
