Tyke 2 house plan

Usable area: 81.21 m² / The cost of the realization: 76 900 EUR

Show mirror image

Price: 900 EUR

Description Plans Elevations Situations Animation Interiors Variants (0) Realizations (5) Detailed drawings List of materials Comments (3)

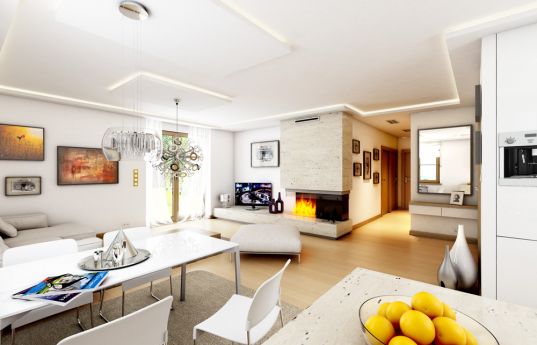

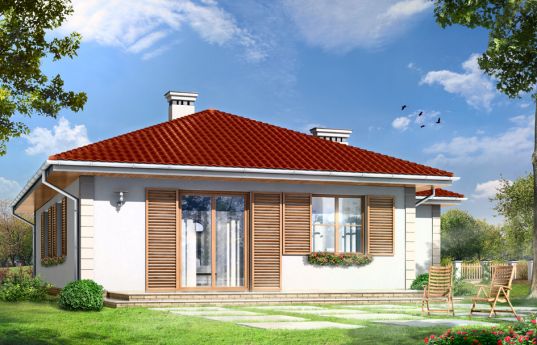

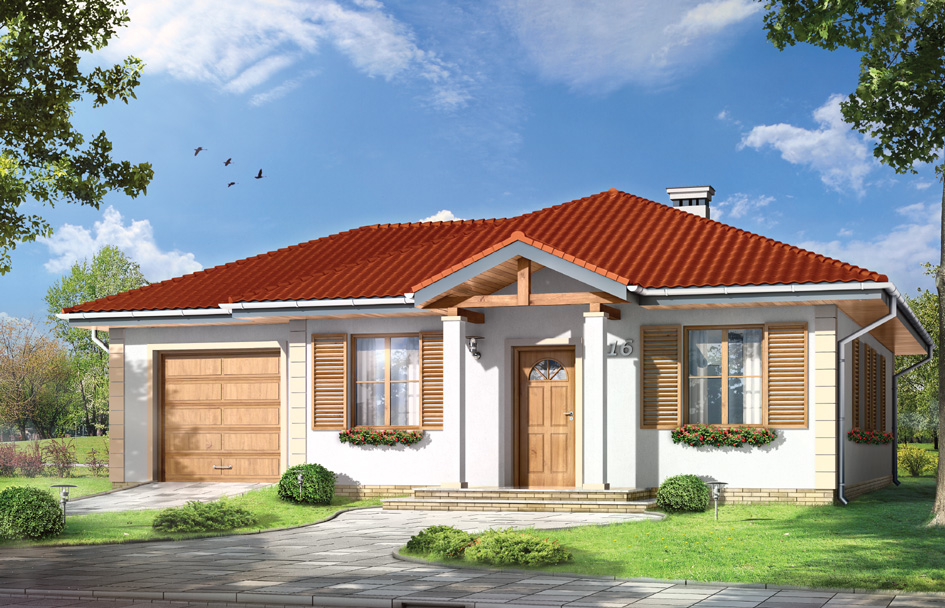

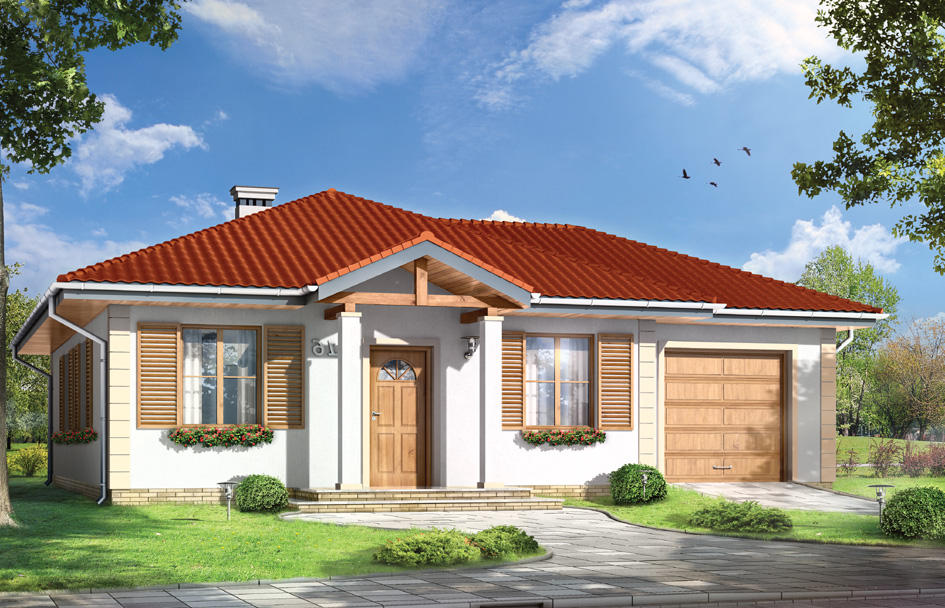

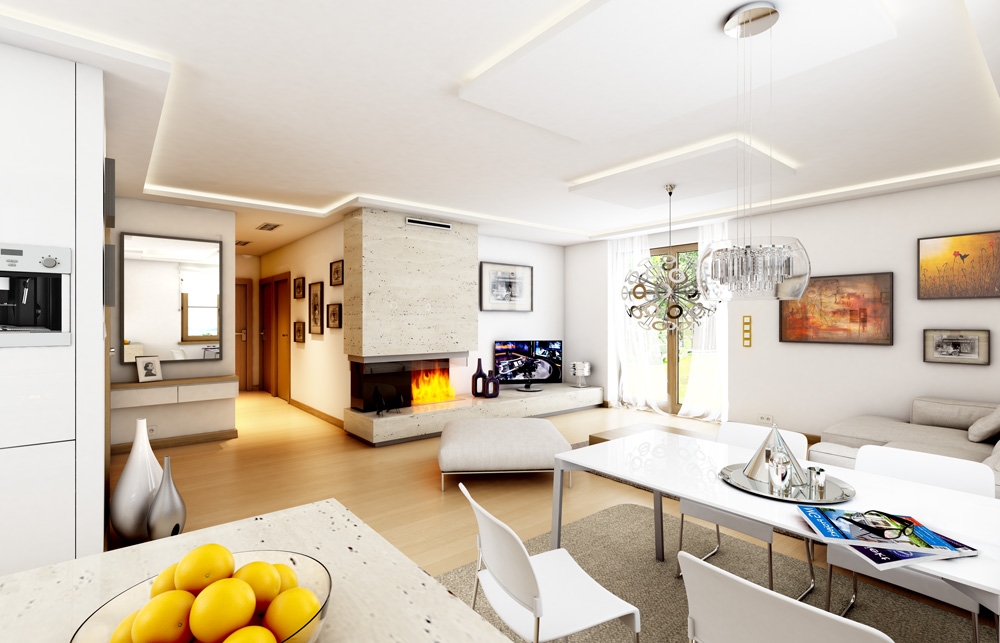

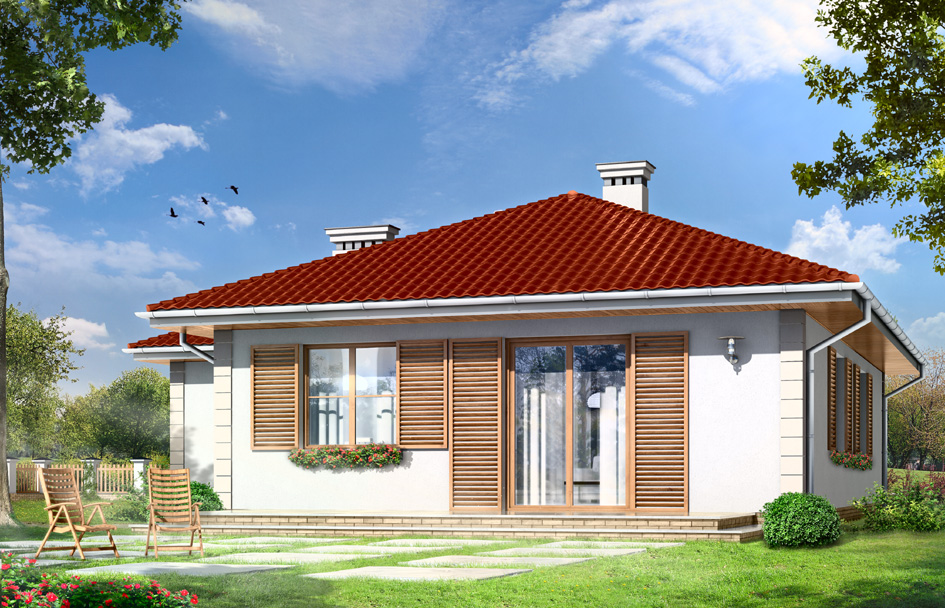

Tyke 2 house plan is suitable house for a family of four people. House is built on a rectangular plan and covered by a hipped roof, it has built another garage. It is a house suitable for on a narrow plot. Thanks to entrance from the narrow end, house together with garage fit perfectly to 19 meters plot. Inside house on a small area managed to design a comfortable, four-room apartment with a technical background, consisting of: a spacious living room with kitchen, three bedrooms, bathroom, toilet and boiler room. In the living room were designed central fireplace and wide glass door to the garden terrace. From the kitchen window you can also enjoy the garden and terrace. From the outside, house refers to the architecture of mansions, in the modern sense. Entrance porch on small columns, window shutters, or rusticated corners - all these elements fit perfectly into the gentle hipped roof. There is also available mirror version of this house plan.

Specifications:

Cubature: 418 m³/ 14759,58 ft³
Built-up area: 126,4 m² / 1360,06 ft²
Total area: 126,4 m² / 126,4 ft²
Net area: 84,07 m²+ garage / 904,59 ft² + garage
Usable area: 81,21 m² / 873,82 ft²
Roof area: 176,3 m² / 1896,99 ft²
Roof slope: 24 degrees
Height of the building: 5,08 m (5,38 m with foundation) / 16,66 ft (17,65 ft with foundation)
Wide of the building: 11,98 m / 39,29 ft
Length of the building: 12,24 m / 40,15 ft
Minimum plot width: 18,98 m / 62,25 ft
Minimum plot lengthi: 20,57 m / 67,47 ft
Height of rooms: 2,6 m / 8,53 ft

Materials:

Foundations - concrete bench and foundation walls with concrete blocks
External walls - aerated concrete 24 cm + foamed polystyrene + thin-layer plaster
Ceiling - wooden truss
Elevation - thin-layer plaster on polystyrene
Roof - tile

The costs of implementing:

The raw state open	21 600,00 EUR
The raw state closed	35 700,00 EUR
The cost of finishing works	41 200,00 EUR
Execution of turnkey home	76 900,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

Urwis II - kosztorys

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Tyke 2 - detailed file

House plan Tyke 2 - detailed file - mirror
