Vertigo house plan

Usable area: 309.43 m2   /   The cost of the realization: 284 200 EUR

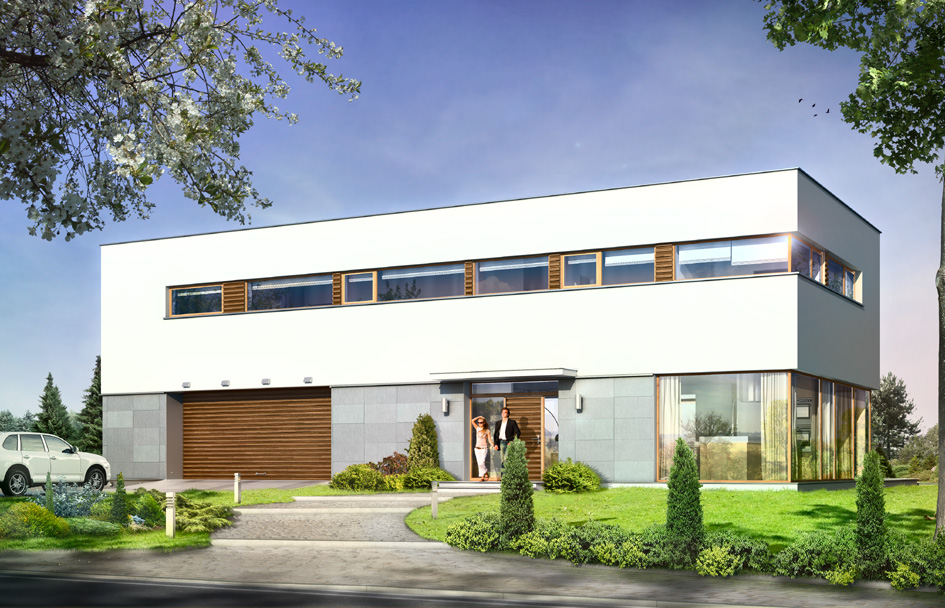

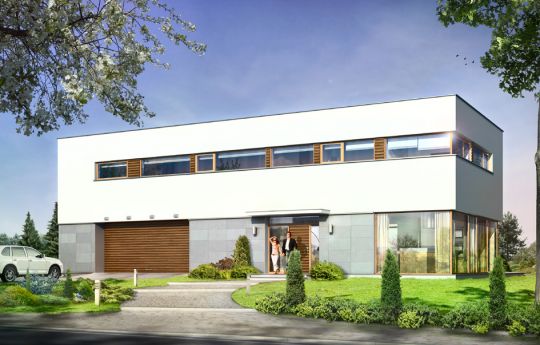

House plan Vertigo - front visualization

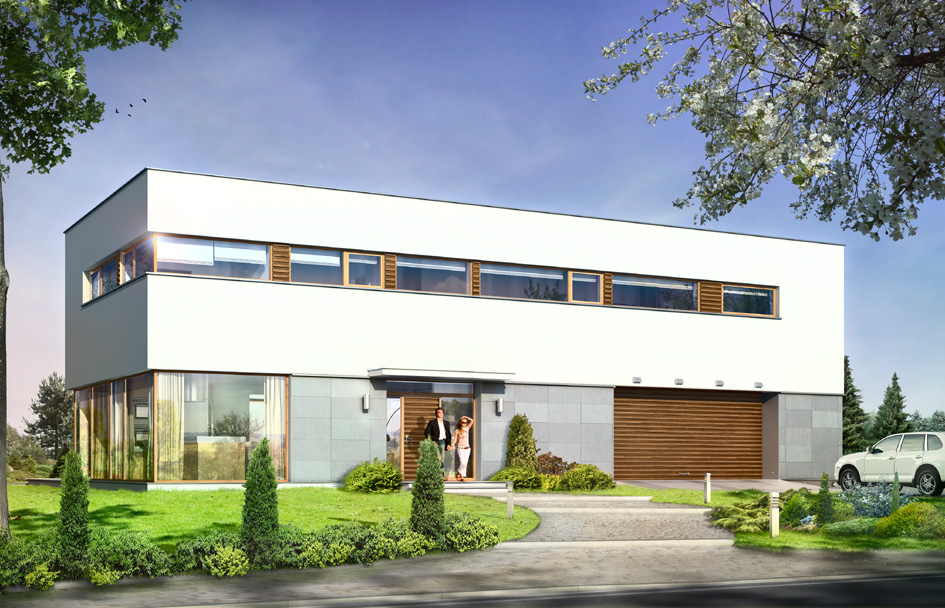

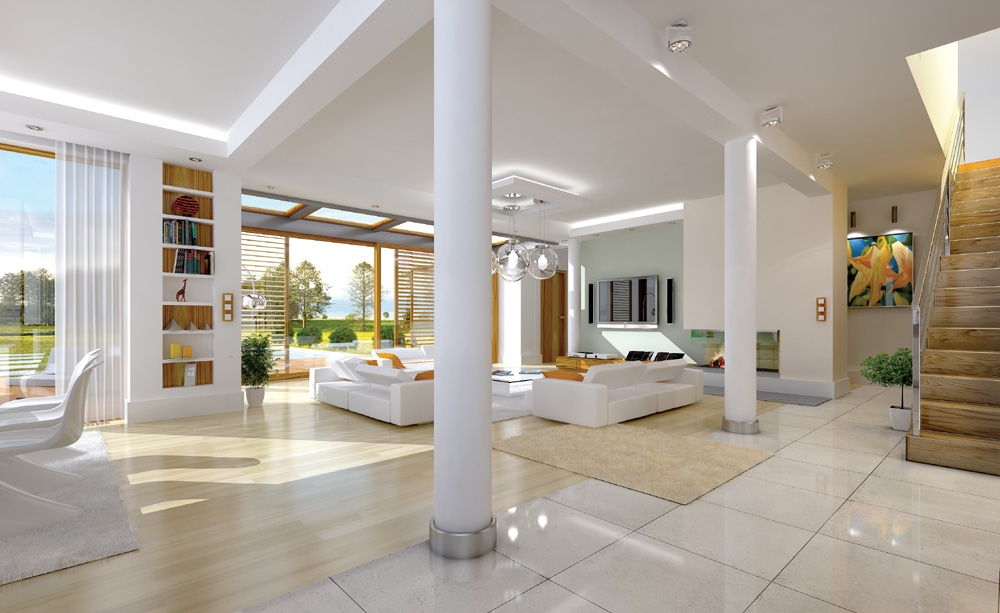

Show mirror image

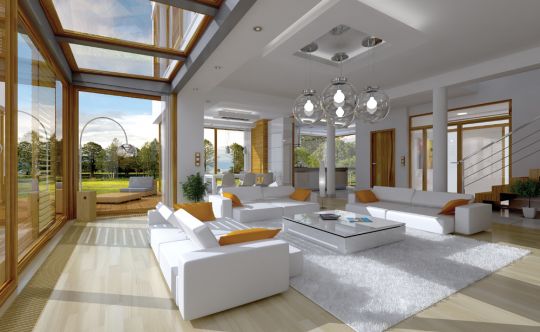

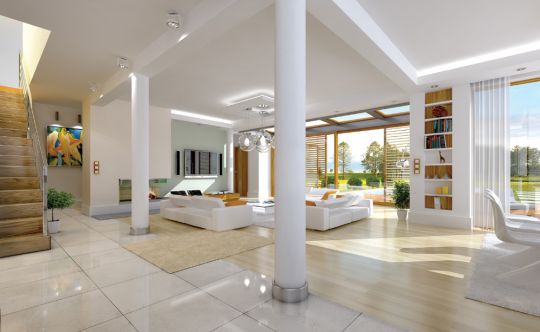

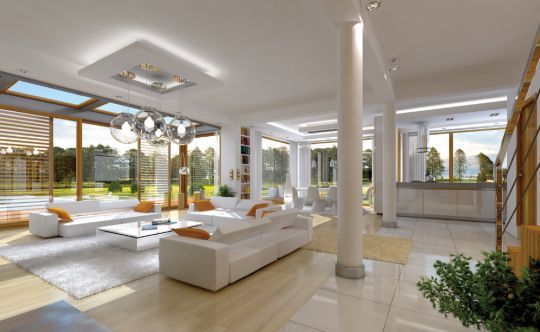

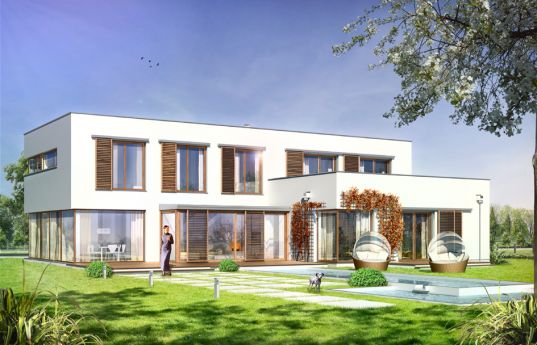

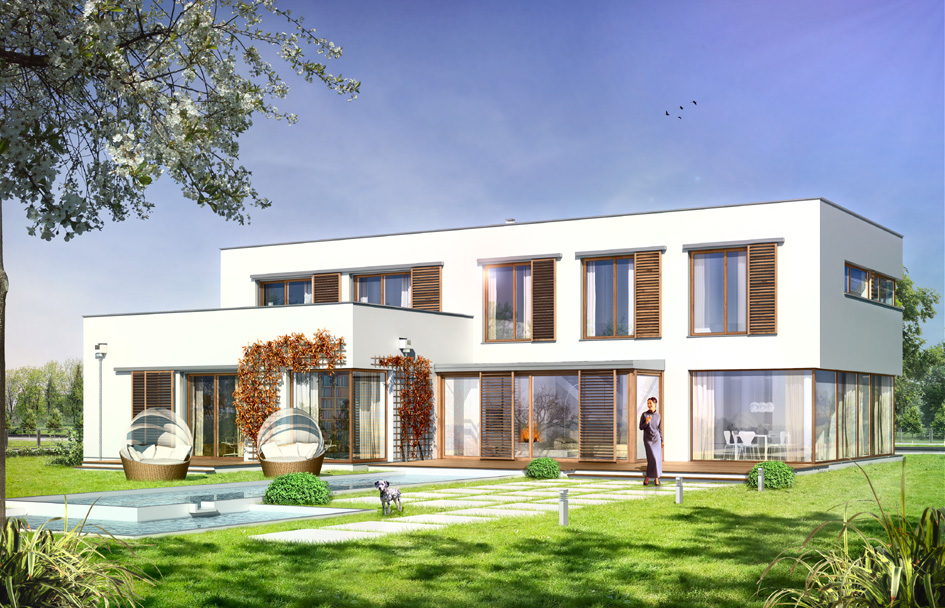

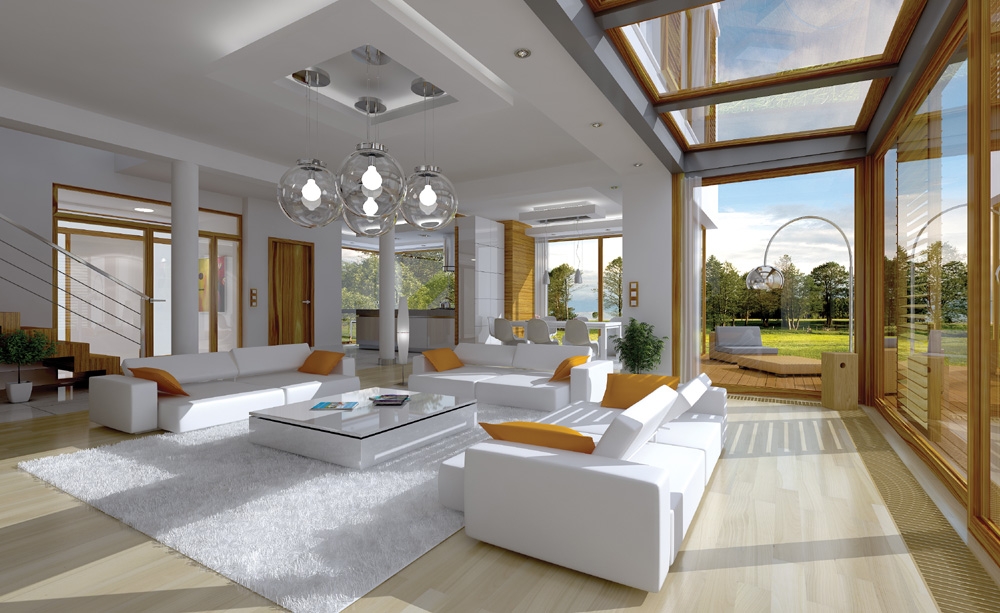

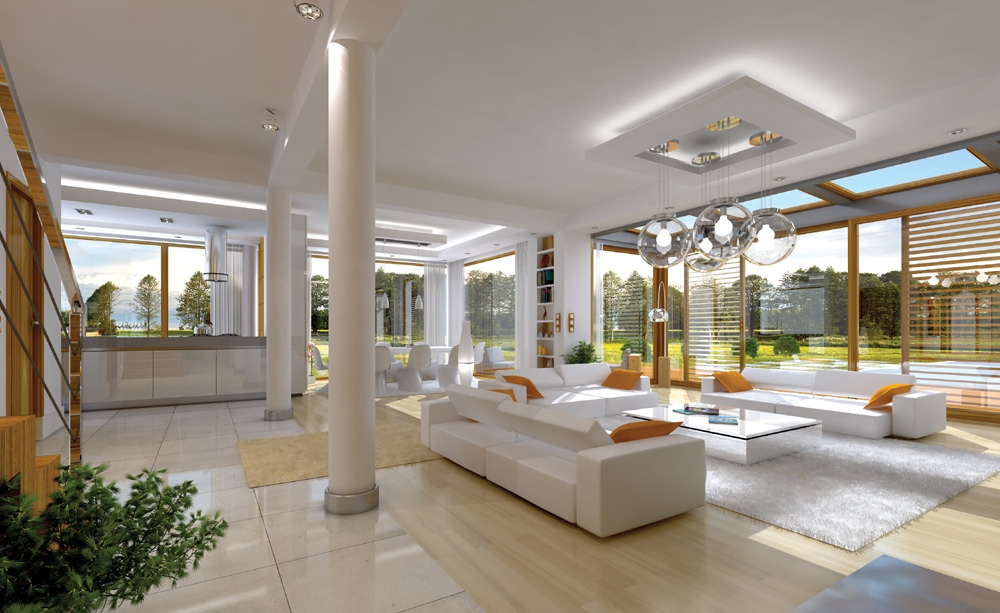

Vertigo house plan is designed for large, family of even seven people, designed in the convention of modern urban villa. Building was designed as storey, with a flat roof, consisting of two juxtaposed and intermingled rectangular solids. Exterior architecture of Vertigo has two faces. From the front elevation the building gives the impression of massive closed before the eye of strangers, with a small amount of glazing, with only accented a part of entrance vestibule. From the garden elevation has a different face - open to the garden, with lots of glass surfaces, with a conservatory between the interior of the living room and terrace. From the garden massive storey block was balanced by ground floor part with large glazed. Sliding shutters and windows refer to Mediterranean villa - despite ultra-modern lines of the building. The whole point of the project was subjugation raw geometric modernity and softening its by natural materials. Interior of the house is divided into four parts. On the ground floor: daily - living room, parents' apartment, utility part - with a garage and boiler room, and some of the bedrooms on the first floor. Large undivided daily interior attracts the attention, with a living room, dining room, hall - with representative staircase and a kitchen. All rooms are fully open to the garden - with glass walls from floor up to ceiling. Decorations, as a conservatory in the living room, a large corner fireplace, beautiful kitchen with central island, makes that the house is special and unique. A large number of rooms – e.g. bedrooms, will allow to live here even very large family.There is also available mirror version of this house plan.

Specifications:
  • Cubature: 1448 m3 / 51128,88 ft3
  • Built-up area: 250,59 m2 / 2696,35 ft2
  • Total area: 432,75 m2 / 4656,39 ft2
  • Net area: 320,14 m2 + garage / 3444,71 + garage
  • Usable area: 309,43 m2 / 3329,47 ft2
  • Roof area: 242,97 m2 (flat roof, roof terrace) / 2614,36 ft2 (flat roof, roof terrace)
  • Kąt nachylenia dachu:  flat roof
  • Height of the building: 6,90 m (7,15 m with foundation) / 22,63 ft (23,45 ft with foundation)
  • Wide of the building: 20,56 m / 67,44 ft
  • Length of the building: 14,88 m / 48,81 ft
  • Minimum plot width: 28,56 m / 93,68 ft
  • Minimum plot length: 22,88 m / 75,05 ft
  • Height of rooms  3,0 i 2,7 m / 9,84 and 8,86 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  Teriva
  • Elevation - thin-layer plaster on polystyrene
  • Roof - tar roofing






The costs of implementing:
The raw state open 116 500,00 EUR
The raw state closed 162 000,00 EUR
The cost of finishing works 122 200,00 EUR
Execution of turnkey home 284 200,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Vertigo- detailed drawings

House plan Vertigo- detailed drawings - mirror

Comment
Vertigo house plan 5514 Marek
2013.11.15 0 Pozytywny komentarz Negatywny komentarz

Hello! I want to start the building of this home soon. I already got a house plan and I’m fixing a building permit. I am very pleased that the looking for the project is behind me :), it’s not so easy ;). I ask the benevolent people to share their experience. I would be grateful for any information;)

Vertigo house plan 5513 Marek
2013.11.13 0 Pozytywny komentarz Negatywny komentarz

We decided on this house plan together with my husband. In the spring of next year we start its building. To choose this project encouraged us the architecture of this house (we really like), and secondly, we have a small plot.

Vertigo house plan 2611 Karasik Ilona
2012.03.27 0 Pozytywny komentarz Negatywny komentarz

Hello everyone! I already ordered the project. We are currently awaiting for a building permit. This house is ideal in every respect, and most importantly, that we can build it without taking a loan.
