Villa Atrium

Usable area: 257 m2   /   The cost of the realization: 284 300 EUR

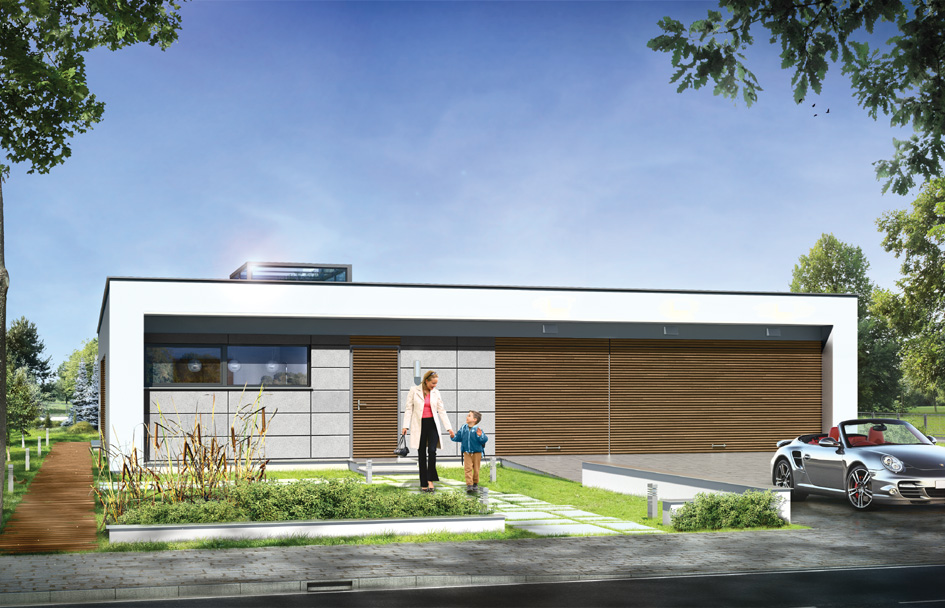

House plan Villa Atrium - front visualization
Show mirror image

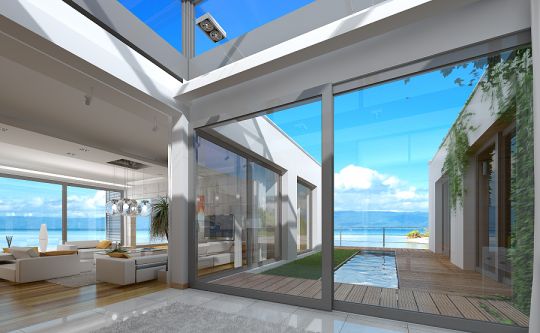

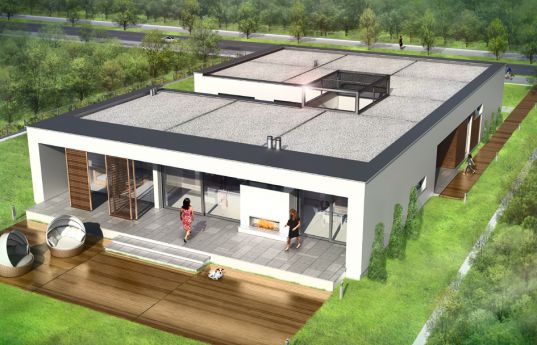

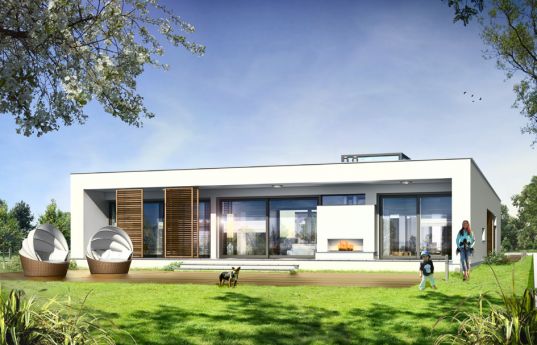

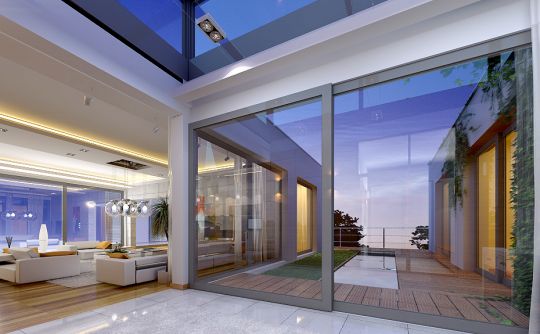

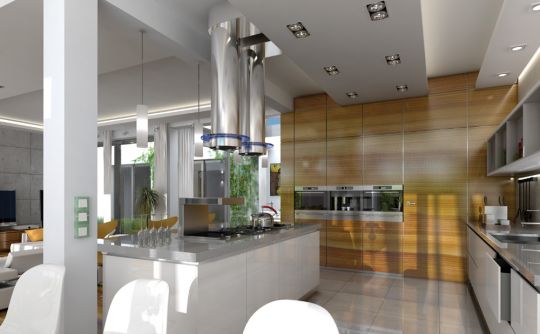

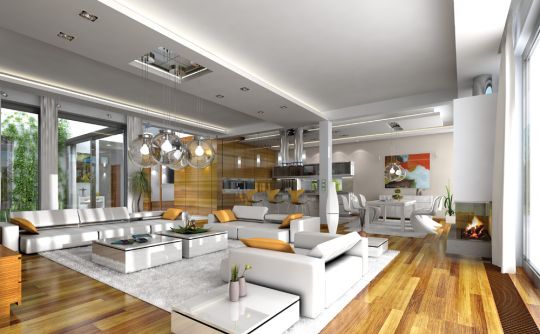

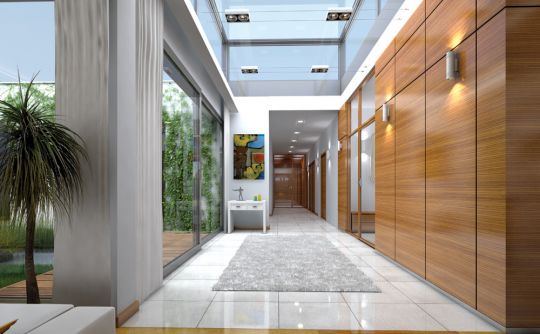

Villa Atrium - is detached house, designed as a single-storey, covered by flat-roof "box" with an open entrance elevation, glassed garden elevation and inner atrium. Atrium in the middle of the body allows you light the internal rooms and create a private, intimate garden - completely isolated from the eyes of neighbors. Space of house is divided functionally into parts. In the front part were designed technical rooms - with a large garage and boiler room, there is also children's bedrooms and a guest suite and study room - office. In the garden part were designed living room, with kitchen, dining area and lobby, and parents’ apartment, with a bedroom, bathroom and dressing room. Large amount of glazing - from the living room and bedroom - gives you the opportunity for contact with the surrounding nature. The house has two separate entrances: daily - from the front elevation, between the garage and office, and the second - representative, leading along the side elevation to enter doors through the glass atrium then to elevated central vestibule, with a skylight in the roof and beautiful views of the interior atrium. Uses rarely seen details, materials and solutions - as completely glazed, hidden in the arcade facade garden, with massive two-sided fireplace, and beautiful kitchen island visible from the living room. These elements provide uniqueness and style of your house. Both the external appearance of the house and its interiors create a unique and original effect. There is also available mirror version of this house plan.

Specifications:
  • Cubature: 1345 m3 / 47491,95 ft3
  • Built-up area: 369,17 m2 / 3972,27 ft2
  • Total area: 369,17 m2 / 3972,27 ft2
  • Net area: 257 m2 + garage / 2765,32 ft2 + garage
  • Usable area: 257 m2 / 2765,32 ft2
  • Roof area: 345,50 m2 / 3717,58 ft2
  • Roof slope:  2%
  • Height of the building: 3,65 m (4,90 m with foundation and skylight) / 11,97 ft (16,07 ft with foundation and skylight)
  • Wide of the building: 16,82 m / 55,17 ft
  • Length of the building: 26,6 m / 87,25 ft
  • Minimum plot width: 23,82 m / 78,13 ft
  • Minimum plot length: 34,6 m / 113,49 ft
  • Height of rooms:  3,0 m / 9,84 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  reinforced concrete
  • Elevation - thin-layer plaster on polystyrene
  • Roof - tar roofing




The costs of implementing:
The raw state open 110 600,00 EUR
The raw state closed 175 800,00 EUR
The cost of finishing works 108 500,00 EUR
Execution of turnkey home 284 300,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Villa Atrium - detailed file

House plan Villa Atrium - detailed file- mirror

Comment
Villa Atrium 1470 Haba87
2012.03.07 0 Pozytywny komentarz Negatywny komentarz

Hello! I want to start the building of this home soon. I already got a house plan and I’m fixing a building permit. I am very pleased that the looking for the project is behind me :), it’s not so easy ;). I ask the benevolent people to share their experience. I would be grateful for any information;)

Villa Atrium 1471 HubertM
2012.03.01 0 Pozytywny komentarz Negatywny komentarz

The project is great well planned interior (maximum functional), and this simple home architecture without complicated solutions that will reduce the costs of building, a great house at a reasonable price.

Villa Atrium 839 Gosiaczek88
2012.02.22 0 Pozytywny komentarz Negatywny komentarz

We decided on this house plan together with my husband. In the spring of next year we start its building. To choose this project encouraged us the architecture of this house (we really like), and secondly, we have a small plot.
