Villa l'Azur

Usable area: 221.92 m2   /   The cost of the realization: 246 000 EUR

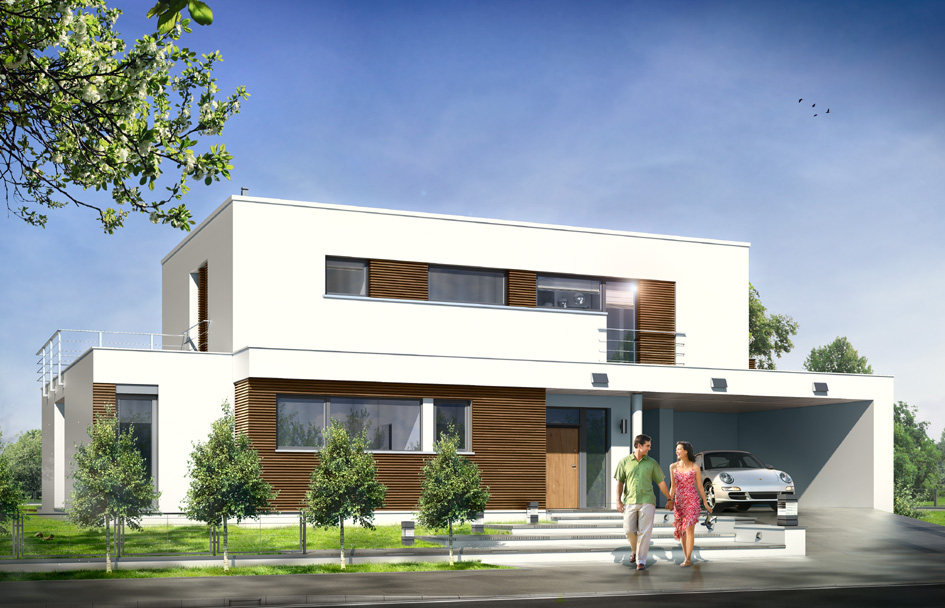

House plan Villa l' Azur - front visualization

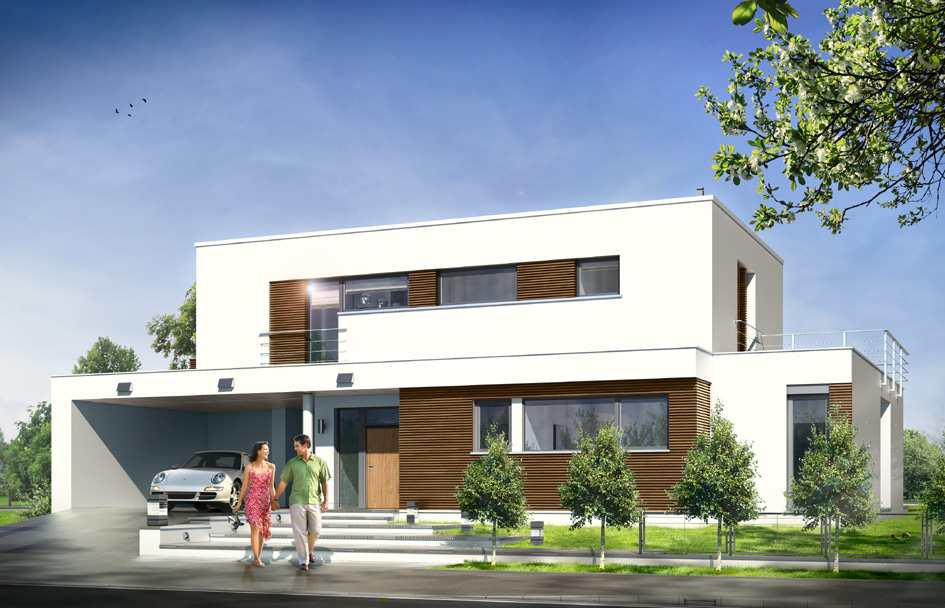

Show mirror image


Villa l'Azur is an elegant, one-storey detached house with a flat roof, designed for family of 4-5 people. Building consists of a main one-storey body, surrounded by a storey outhouse and terraces. Architecturally, Villa l 'Azur refers to the modernist, twentieth-century villas with flat roofs - in contemporary terms, with using modern materials and solutions. House is at the same time interesting and intriguing at the same time toned and restrained in expression. Penetrating mutually cubes blocks, massive roofs, large glass - all this creates a unique whole. Contrasting surfaces of white walls, in combination with wooden cladding, windows and chiaroscuro create a very "sculptural" form of the building. House is designed in two variants - with carport from the front or with garage. The interior of the villa is classically divided in daily part on the ground floor and bedrooms upstairs. From large glazed atrium we go to the central hall - dining room, combined with an open kitchen with an island and beautiful living room with a tripartite set fireplace. Living room has in the most part increased ceiling, beautiful glass doors to the garden. The kitchen is connected to the utility rooms- with a boiler room and pantry. On the ground floor for was designed extra room - for example office, bathroom and carport or garage. On the first floor there are three bedrooms, including parents’ apartment with a separate dressing room and bathroom. From the bedroom you can go out on the beautiful terrace on the top floor. There is also available mirror version of this house plan.

Specifications:
  • Cubature: 1048 m3 / 37004,88 ft3
  • Built-up area: 170,93 m2 + roffing + arcade / 1839,21 ft2 + roffing + arcade
  • Total area: 288,14 m2 / 3100,39 ft2
  • Net area: 221,92 m2 + roffing / 2387,86 ft2 + roffing
  • Usable area: 221,92 m2 / 2387,86 ft2
  • Roof area: 256,92 m2 (flat roof) / 2764,46 ft2 (flat roof)
  • Roof slope:  flat roof
  • Height of the building: 6,90 m (7,25 m with foundation i skylight) / 22,63 ft (23,78 ft with foundation i skylight)
  • Wide of the building: 19,95 m / 65,44 ft
  • Length of the building: 13,1 m / 42,97 ft
  • Minimum plot width: 26,95 m / 88,40 ft
  • Minimum plot length: 21,1 m / 69,21 ft
  • Height of rooms:  3,0 i 2,7 m / 9,84 and 8,86 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  Teriva
  • Elevation - thin-layer plaster on polystyrene
  • Roof - tar roofing






The costs of implementing:
The raw state open 100 900,00 EUR
The raw state closed 140 200,00 EUR
The cost of finishing works 105 800,00 EUR
Execution of turnkey home 246 000,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Villa l'Azur - detailed file

House plan Villa l'Azur - detailed file - mirror
