House with a view 2

Usable area: 221.97 m2   /   The cost of the realization: 199 000 EUR

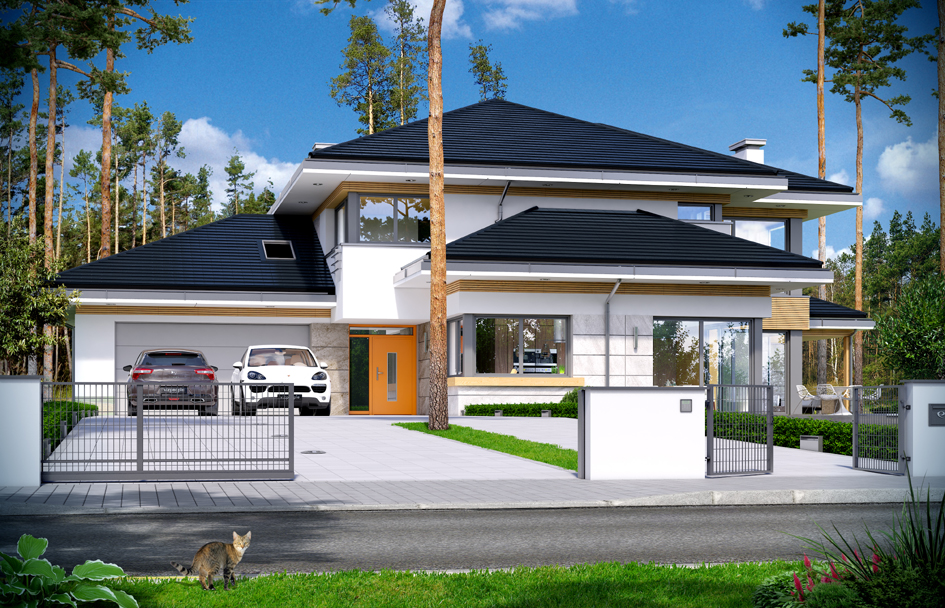

House with a view 2 - front visualization

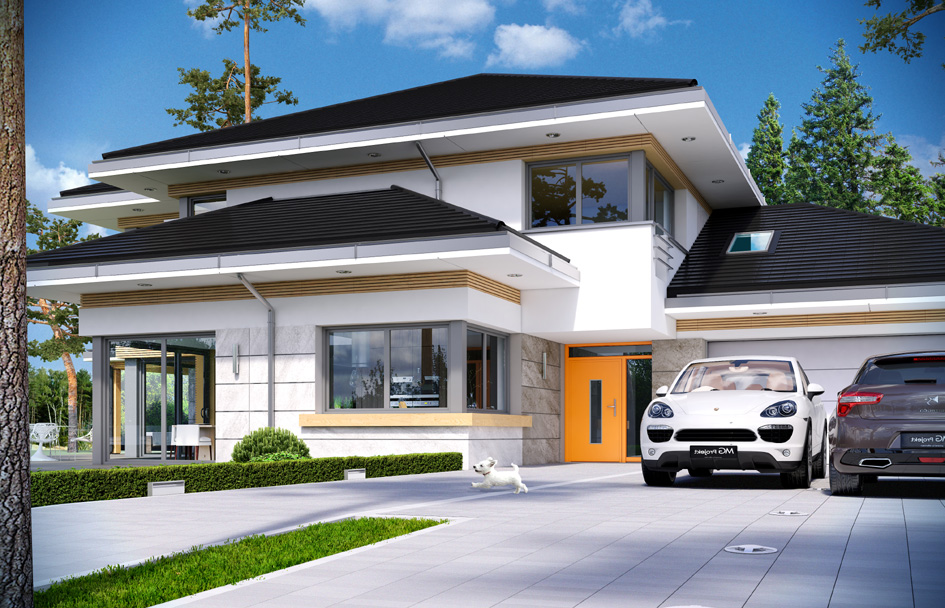

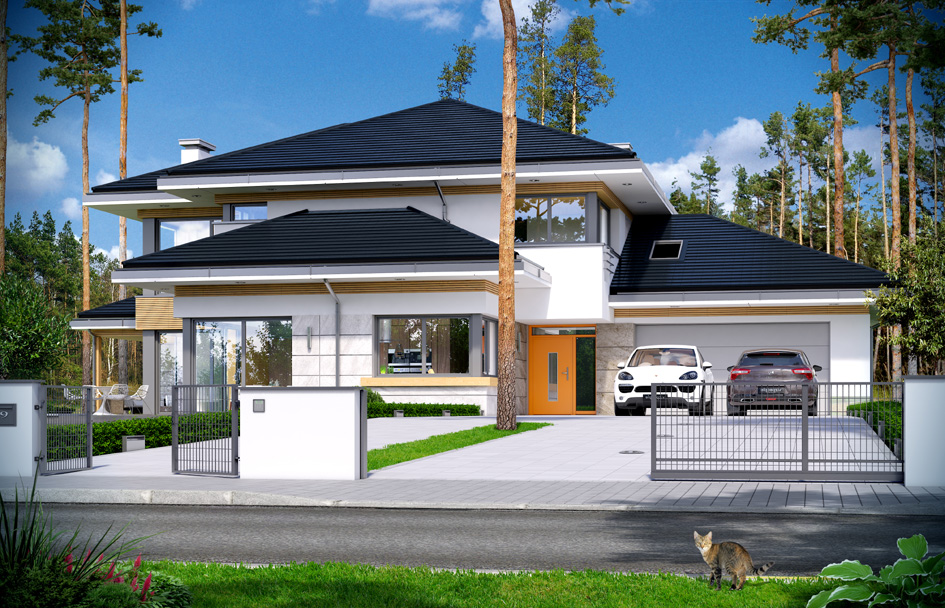

Show mirror image


House with a view 2 is a variant version of the popular House with a view. The house has been quite substantially reduced, the surface is less than 20%, similar as the cost of construction. However, house did not lost on the elegant appearance and functionality of the interior. House with a view 2 is modern urban vila, with dynamic and interesting architecture, open to the garden with lots of attractive finishing materials, details and interesting body. A good mix of materials, details and colors create a unique feeling of comfort, convenience and independence. The application program has been slightly cut down in compared to the base version, but the house did not lost its functionality. Its interior is still full of space. On the ground floor was designed open daily part with living above the emptiness and the opening to the mezzanine on the first floor, dining room, lobby with representative staircase and a large kitchen with an island. We enter the house through the atrium with a cloakroom. On the ground floor there are also boiler room, toilet and garage with storage space. Upstairs There are also three bedrooms, bathroom, separate toilet. From the of vestibule we go to the garage and boiler room. Stairs from the hall lead us to the attic, which can be adapted to the usable attic. In the living room we have fireplace and television wall, a fabulous opening to the garden through the corner window and exit to the covered terrace. The house has uncomplicated design and compact shape. It should be inexpensive in construction and subsequent maintenance. On the first floor three bedrooms with a separate parents' apartment with its own bathroom and dressing room, second bathroom, and attic - laundry / drying room, or just a magazine, or an extra room. House is energy efficient - has a very good insulation. It can be easily adapted to NF40 standard. House has a compact body and is inexpensive in construction and subsequent maintenance. There is available different versions of this house: mirror variant, much smaller and cheaper in realization variant (House with a view 3 ) and very comfortable variant (House with view 4).

Specifications:
  • Cubature: 1230 m3 / 43431,3 ft3
  • Built-up area:
    • without arcades 220,24 m2 / 2369,78 ft2
    • with arcades 244,22 m2 / 2627,81 ft2
  • Total area: 368,27 m2 / 3962,59 ft2
  • Net area: 243,36 m2 + garage 35,10 m2 / 2618,55 ft2 + garage 377,68 ft2
  • Usable area:
    • 221,97 m2 wg PN-70/B-02365 / 2388,40 ft2 wg PN-70/B-02365
    • 243,36 m2 + garage wg PN-ISO 9836:1997 / 2618,55 ft2 + garage wg PN-ISO 9836:1997
  • Roof area: 366,63 m2 / 3944,94 ft2
  • Roof slope: 25 degrees
  • Height of the building: 9,06 m (9,36 m with foundation) / 29,72 ft (30,70 ft with foundation)
  • Wide of the building: 20,00 m / 65,6 ft
  • Length of the building: 14,09 m / 46,22 ft
  • Minimum plot width: 30,05 m / 98,56 ft
  • Minimum plot length: 22,09 m / 72,46 ft
  • Height of rooms: 2,98 i 2,7 m / 9,77 and 8,86 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  monolithic reinforced concrete
  • Elevation - thin-layer plaster on polystyrene
  • Roof - ceramic tile






The costs of implementing:
The raw state open 69 700,00 EUR
The raw state closed 117 400,00 EUR
The cost of finishing works 81 700,00 EUR
Execution of turnkey home 199 000,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House with a view 2 - detailed file

House with a view 2 - detailed file - mirror
