Hetman house plan

Usable area: 188.57 m2   /   The cost of the realization: 147 000 EUR

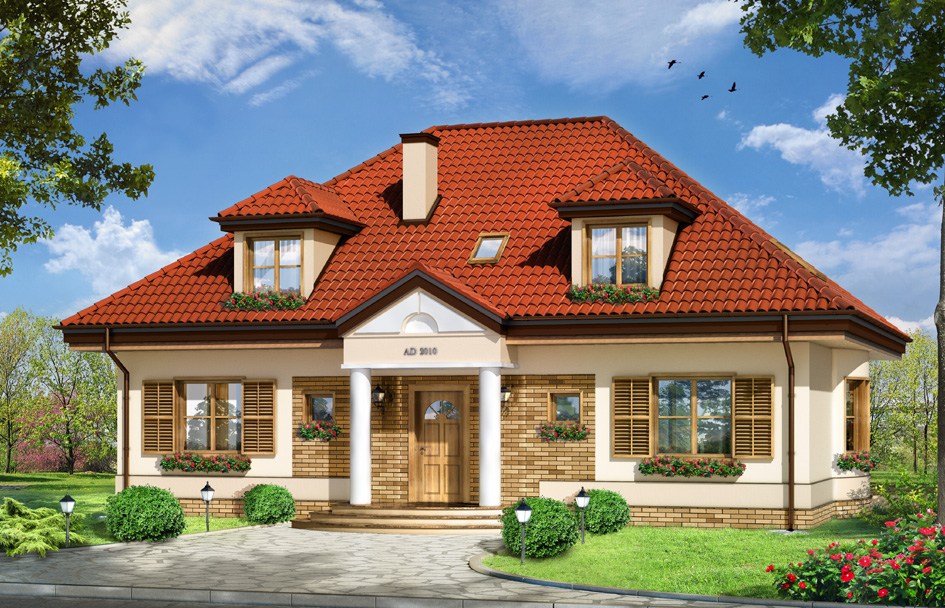

House plan Hetman - front visualization

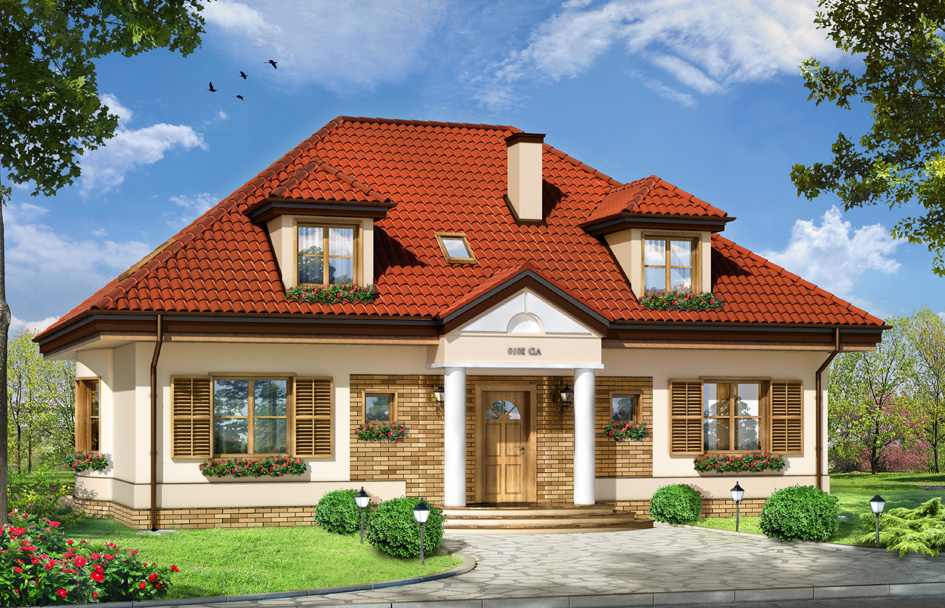

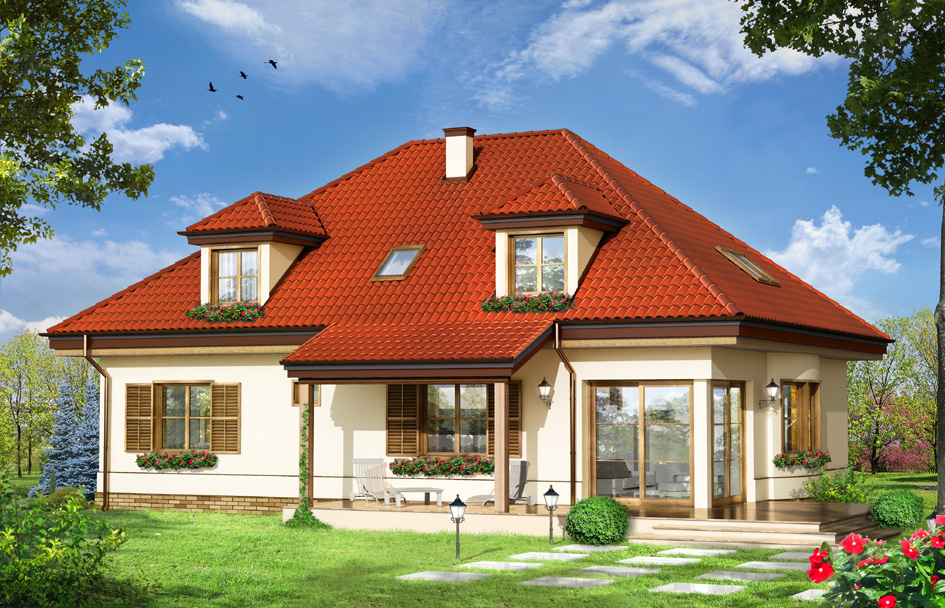

Show mirror image


Hetman house plan is a detached house for a family four-seven-residence with the possibility of living for a multigenerational family - children, parents and grandparents.

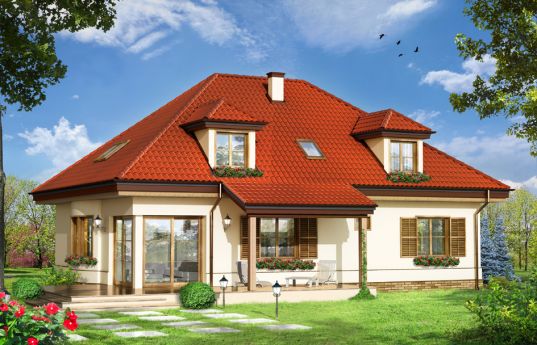

This is a one-storey house a loft covered with a hipped roof. House is partial basement and the economic base was placed there. Hetman house plan, its solid with symmetrical elevations refers to the Polish manor house, but in the modern sense. Breaking the monotony of the axial distribution of the interior even for a corner living room opening into garden and partly covered terrace, gives an interesting architectural effect. These elements give the house original, unique form, without affecting the increase in construction costs. The whole house was subordinated to the arrangement of the functional architecture of the interior. On the ground floor a living area with open space comprising: living room with dining area and lounge area, and partly open kitchen was designed. On the other side are two rooms and a separate bathroom. Rooms can be used as a separate flats for seniors, or as an additional rooms - office or guest bedroom. Opening the living room to the terrace and garden by the corner door will add charm to this large interior. On an attic four bedrooms and two bathrooms is scheduled. One of the rooms can be parent’s bedroom with dressing room and a bathroom. To the basement, which is designed as an open large technical room leads staircase available from the hallway on the ground floor. The partial roof terrace will also use it in bad weather, or too much sunlight. Hetman house plan is also available in the mirror version.

Specifications:
  • Cubature: 807 m3/ 28,495,17 ft3
  • Built-up area: 146,11 m2/ 1572,14 ft2
  • Total area: 270,32 m2/ 2908,64 ft2
  • Net area : 188,57 m2 + basement/ 2029,01 ft2+ basement
  • Usable area: 188,57 m2/ 2029,01 ft2
  • Roof area: 248,04 m2/ 2668,91 ft2
  • Roof slope: 28 degrees
  • Height of the building: 8,18 m (8,86 m with foundation)/ 26,83 ft (29,06 ft with foundation)
  • Wide of the building: 14,63 m/ 47,99 ft
  • Length of the building: 10,24 m/ 33,59 ft
  • Minimum plot width: 22,63 m/ 74,23 ft
  • Minimum plot length: 19,79 m/ 64,91 ft
  • Height of rooms: 2,8 and 2,5 m/ 9,18 and 8,2 ft
Materials:
  • Foundations: concrete benches and foundation walls of concrete blocks
  • External walls: brick walls - airbrick porotherm 25 + polystyrene + thin-layer plaster
  • Ceiling: Teriva
  • Elevations: thin-layer plaster on polystyrene
  • Roofing: ceramic tile




The costs of implementing:
The raw state open 58 800,00 EUR
The raw state closed 83 800,00 EUR
The cost of finishing works 63 300,00 EUR
Execution of turnkey home 147 000,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Hetman - detailed file

House plan Hetman - detailed file - mirror

Comment
Hetman house plan 1538 LaurenB
2012.03.04 0 Pozytywny komentarz Negatywny komentarz

I'll also build this house, in my case decided minimalism: simple and easy to build solid of curiously designed interior.

Hetman house plan 320 Jellew
2012.02.04 0 Pozytywny komentarz Negatywny komentarz

This house is terrific. More than six months we were looking for a home that would meet while in 80% our expectations, this project turned out to be the fulfillment of our needs in 100%, we cannot believe it :)

Hetman house plan 1541 JohnLE
2012.01.19 0 Pozytywny komentarz Negatywny komentarz

The project is great well planned interior (maximum functional), and this simple home architecture without complicated solutions that will reduce the costs of building, a great house at a reasonable price.
