Usable area: 110.48 m2 / The cost of the realization: 84 300 EUR
Show mirror image
Price: 870 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (1) Detailed drawings
List of materials
Comments (3)

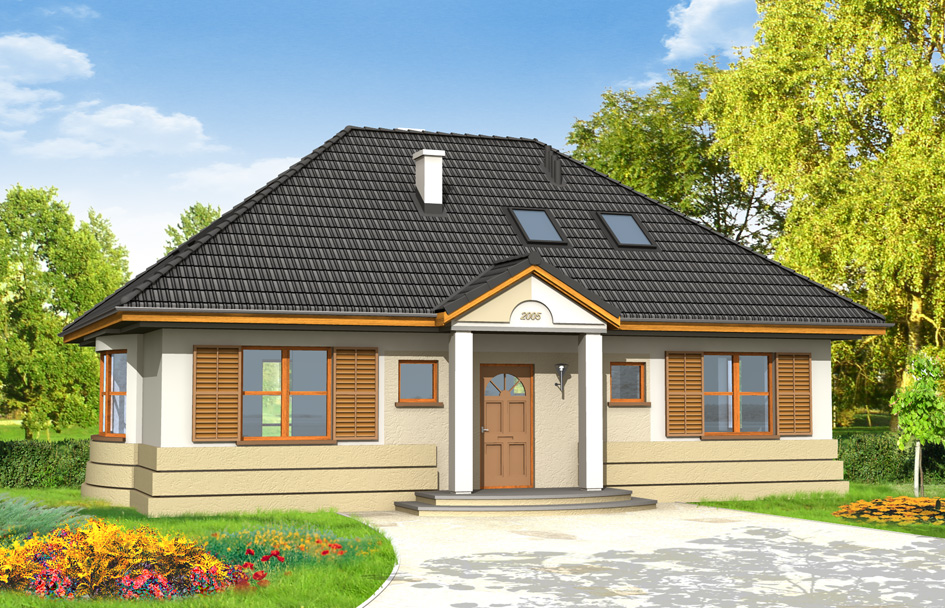

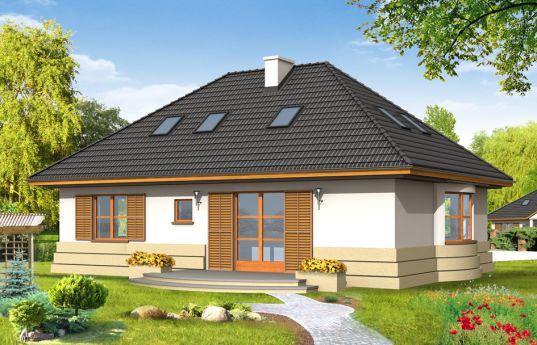

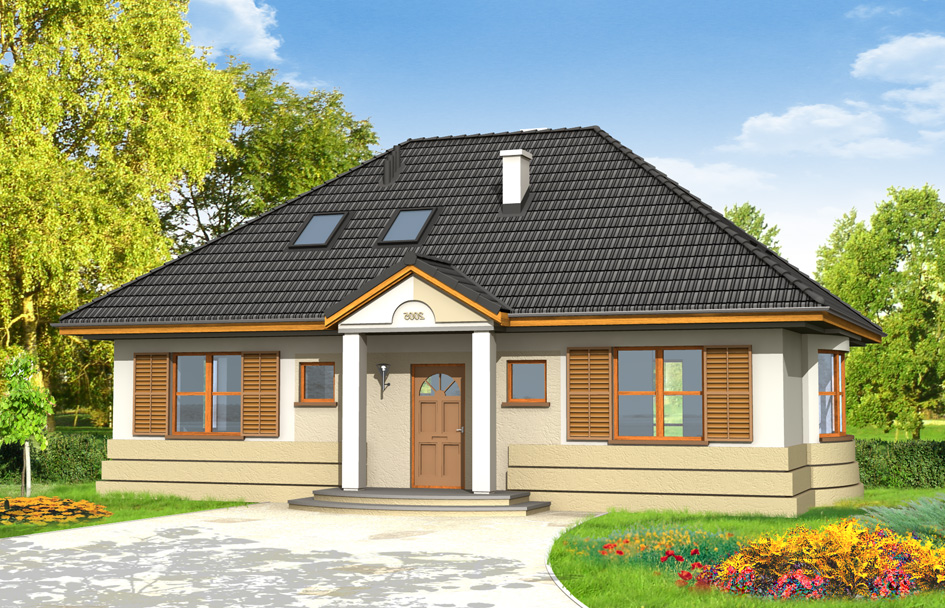

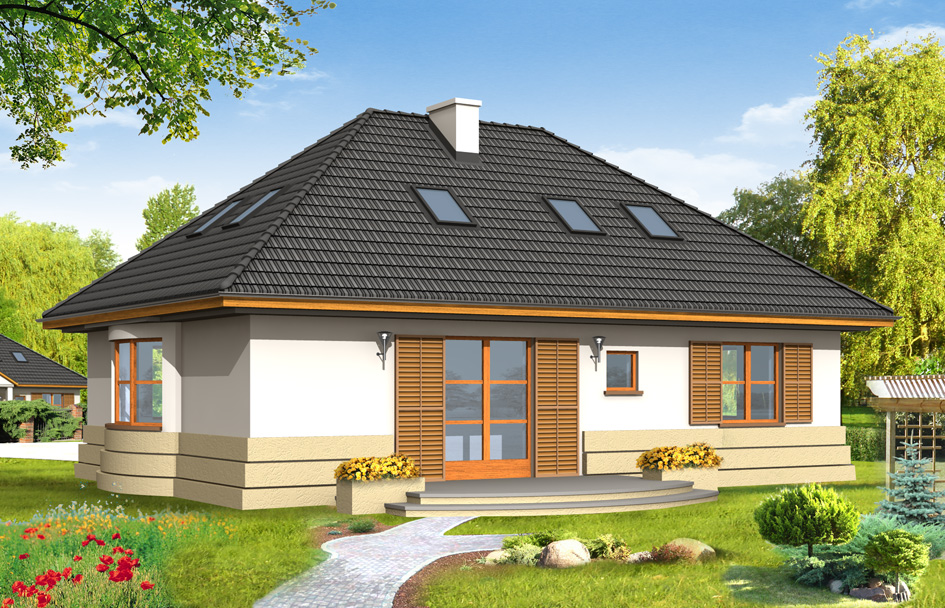

Gargamel house plan is a detached house referring to the form and style of Polish manor. Inside hides a modern interior layout for a family of 4 – 5 people. The building has a hipped roof, front entrance with columns and plinth with rustication expanding downward give the block of house seriousness and reliability. The interior of Gargamel’s house create a comfortable living room with a terrace, a dining room with nice bay window partly open kitchen with a very useful utility room, and in the second wing of the house two rooms with bathroom and dressing room. On the top floor there are two bedrooms with bathrooms. The attic can be finished in the second stage of construction. Gargamel’s house plan is also available in mirror version.
Specifications:
- Cubature: 432 m3/ 15253,92 ft2
- Built-up area: 103,34 m2/ 1111,94 ft2
- Total area: 137,85 m2/ 1483,27 ft2
- Net area : 110,48 m2/ 1188,76 ft2
- Usable area: 110,48 m2/ 1188,76 ft2
- Roof area: 173 m2/ 1861,48 ft2
- Roof slope: 38 degrees
- Height of the building: 6,94 m (7,31 m with foundation)/ 22,76 ft (23,98 ft with foundation)
- Wide of the building: 12,80 m/ 41,98 ft
- Length of the building: 8,34 m/ 27,36 ft
- Minimum plot width: 20,80 m/ 68,22 ft
- Minimum plot length: 16,34 m/ 53,60 ft
- Height of rooms: 2,60 m/ 8,53 ft
Materials:
- Foundations - poured concrete
- Exterior walls - aerated concrete or ceramic airbricks + styrofoam
- Ceiling - reinforced concrete Teriva
- Elevations: thin-layer plaster
- Roofing - Ceramic tile or metal tile
The costs of implementing:
| The raw state open | 28 100,00 EUR |
| The raw state closed | 40 400,00 EUR |
| The cost of finishing works | 44 000,00 EUR |
| Execution of turnkey home | 84 300,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Gargamel - detailed file - mirror
House plan Gargamel - detailed file
