Usable area: 146.29 m2 / The cost of the realization: 111 000 EUR

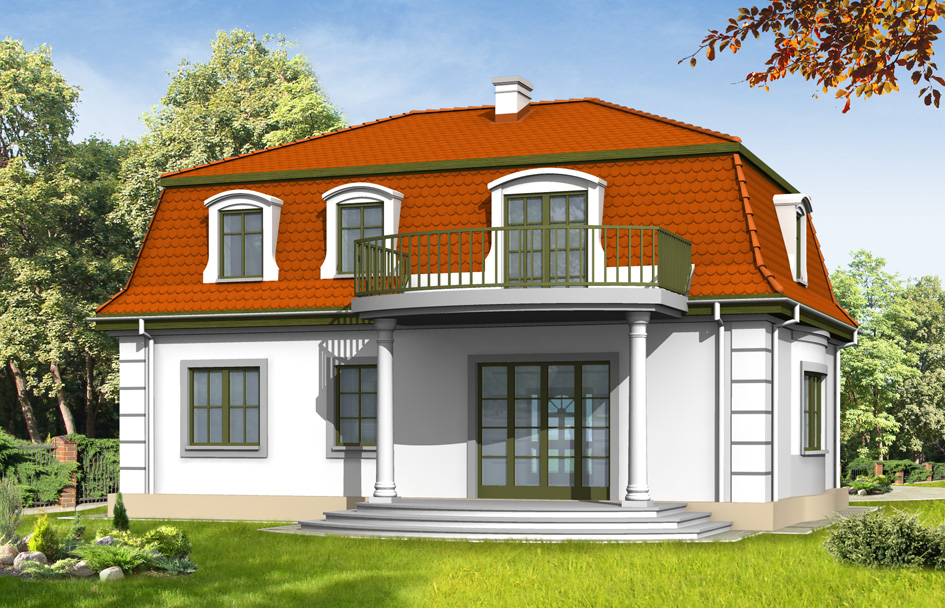

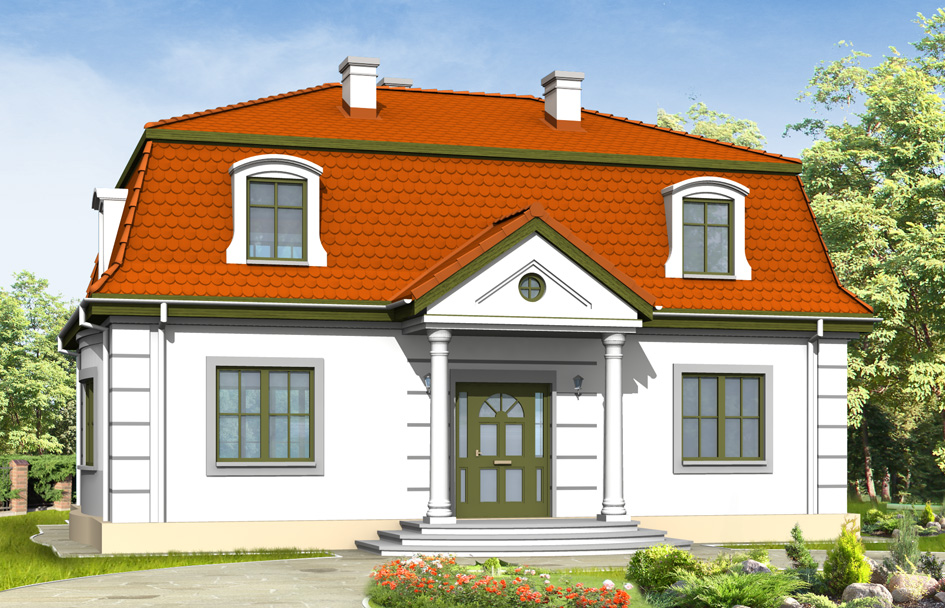

Show mirror image
Price: 1140 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Detailed drawings
List of materials
Comments (3)

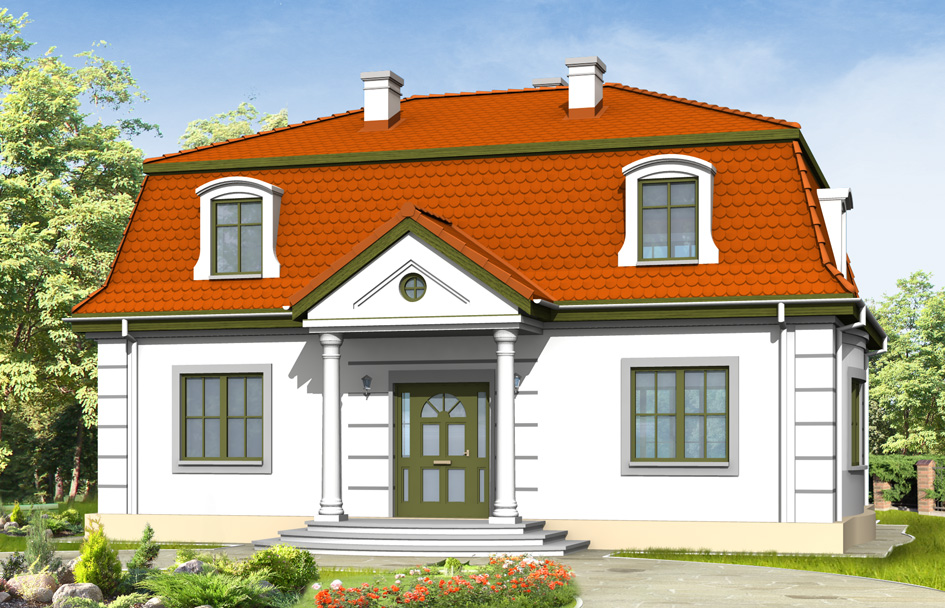

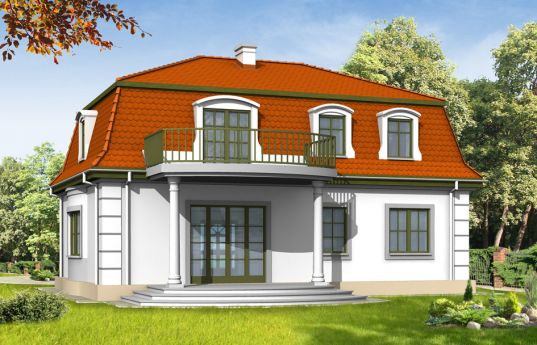

Retro house plan is a stylish villa with a mansard roof, designed for investors who appreciate classical forms. The outer look contrasts with functionally designed interior. On the ground floor there is a spacious living room, kitchen (lockable by sliding doors) and the study with window to the garden and the parents' bedroom. In the attic there are four bedrooms and a bathroom - it can be also a separate apartment. To the side wall you may build garage. There is also available mirror version of this house plan.
Specifications:
- Cubature: 548 m3 / 19349,88 ft3
- Built-up area: 104,82 m2 / 1127,86 ft2
- Total area: 183,95 m2 / 1979,30 ft2
- Net area: 153,38 m2 / 1650,37 ft2
- Usable area: 146,29 m2 / 1574,08 ft2
- Roof area: 218,75 m2 / 2353,75 ft2
- Roof slope: 24 and 75 degrees
- Height of the building: 7,65 m (8,12 m with foundation) / 25,09 ft (26,63 ft with foundation)
- Wide of the building: 12,25 m / 40,18 ft
- Length of the building: 8,64 m / 28,34 ft
- Minimum plot width: 19,25 m / 63,14 ft
- Minimum plot lengthi: 17,8 m / 58,38 ft
- Height of rooms: 2,80 m / 9,18 ft
Materials:
- Foundations - monolithic concrete
- External walls – aerated concrete + polystyrene
- Interior walls - aerated concrete
- Ceiling - reinforced concrete Teriva
- Elevation - thin-layer plaster
- Roof - plain tile
The costs of implementing:
| The raw state open | 39 900,00 EUR |
| The raw state closed | 57 600,00 EUR |
| The cost of finishing works | 53 500,00 EUR |
| Execution of turnkey home | 111 000,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Retro - detailed file - mirror
House plan Retro - detailed file
