Usable area: 131.71 m2 / The cost of the realization: 121 500 EUR
Show mirror image
Price: 940 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Detailed drawings
List of materials
Comments (3)

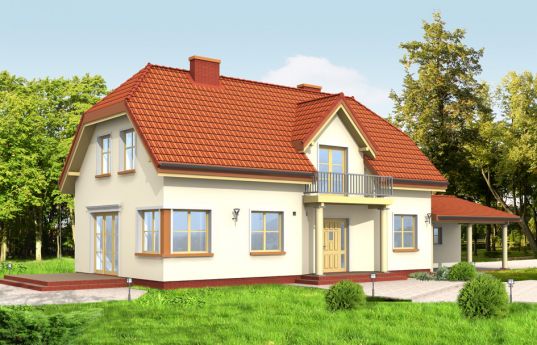

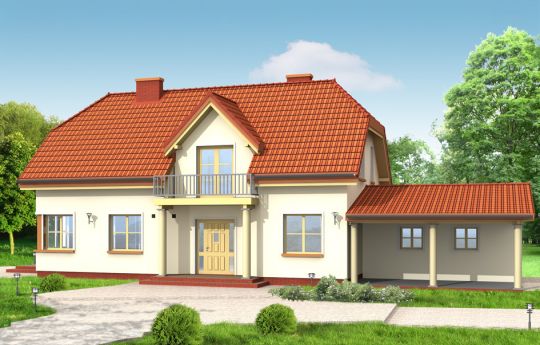

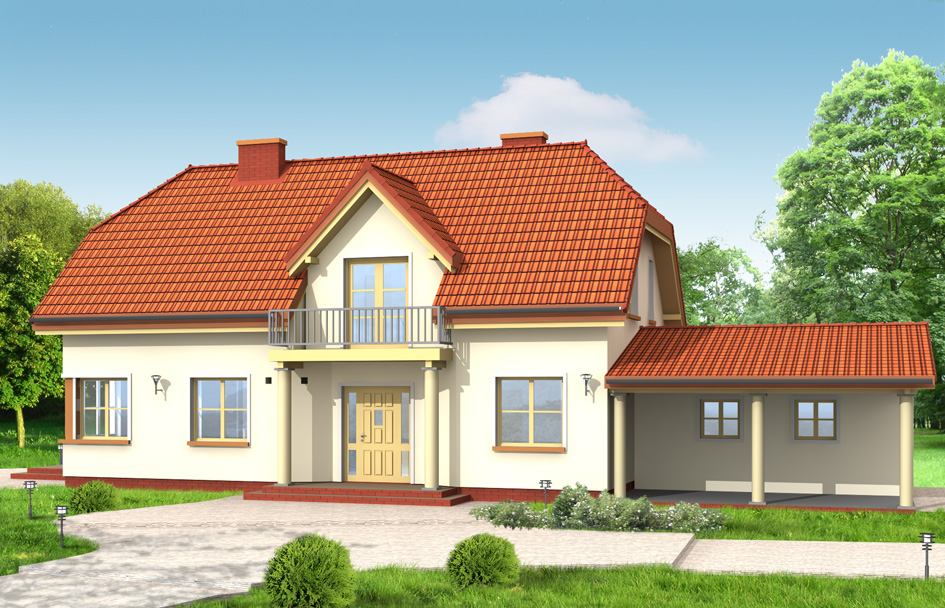

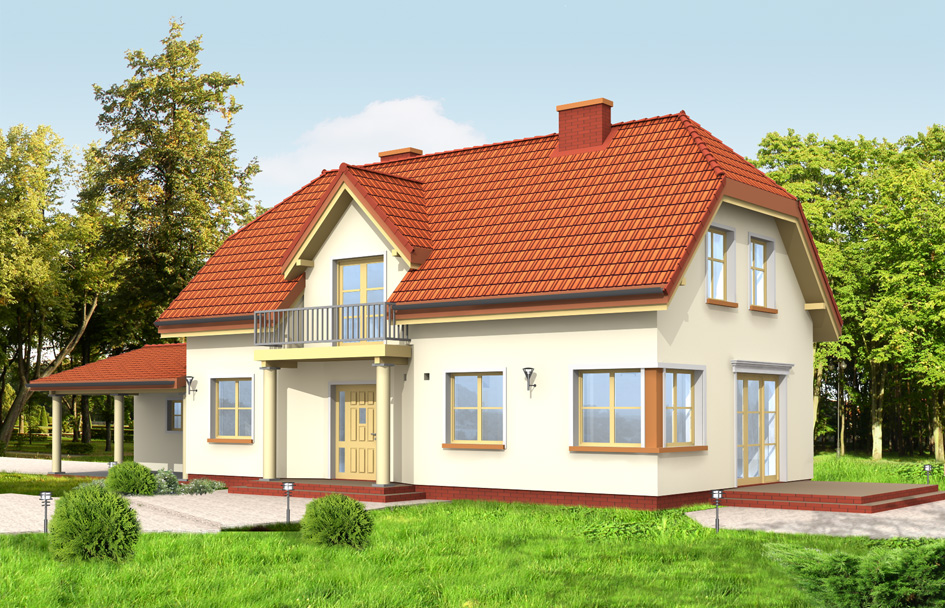

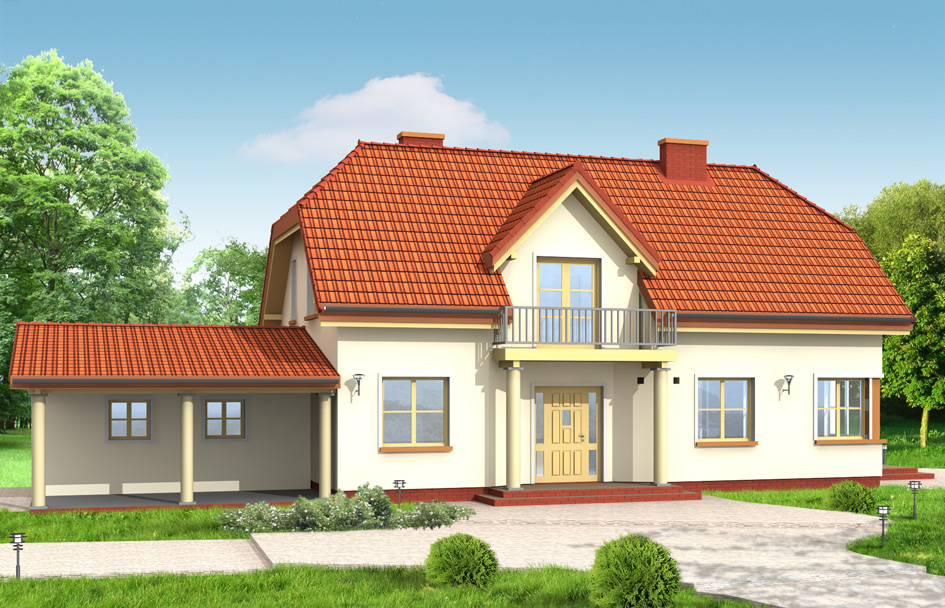

Christopher house plan is a single family villa for 4 to 5 people. This house plan is designed on a narrow plot, with a width of up to 15 m. Ornate facade with balcony and vestibule and pediment roof create a visually pleasing silhouette of the house. The attached garages depending on the setting on the plot may have a door on the front site or on the side site. The interior of the house: on the ground floor has a living room connected with the kitchen and dining annex and with hall, kitchen and office. On the top floor there are three bedrooms with dressing room, bathroom and a large lobby-sitting room (with balcony). Christopher house plan is also available in mirror version.
Specifications:
- Cubature: 497 m3 / 17549,07 ft3
- Built-up area: 146,5 m2 / 1576,34 ft2
- Total area: 211,98 m2 / 2280,90 ft2
- Net area: 162,9 m2 / 1752,80 ft2
- Usable area: 131,71 m2 / 1417,20 ft2
- Roof area: 231,89 m2 / 2495,14 ft2
- Roof slope: 45 degrees
- Height of the building: 8,03 m (8,35 m with foundation) / 26,34 ft (27,39 ft with foundation)
- Wide of the building 19,62 m / 64,35 ft
- Length of the building: 7,5 m / 24,6 ft
- Minimum plot width: 27,62 m / 90,59 ft
- Minimum plot length: 14,5 m / 47,56 ft
- Height of rooms: 2,68 m / 8,79 ft
Materials:
- Foundations - monolithic concrete
- External walls – brick walls - aerated concrete + polystyrene
- Internal walls - aerated concrete
- Ceiling - reinforced concrete Teriva
- Elevation - thin-layer plaster
- Roof - tile or meatal roofing tile
The costs of implementing:
| The raw state open | 36 000,00 EUR |
| The raw state closed | 53 400,00 EUR |
| The cost of finishing works | 68 100,00 EUR |
| Execution of turnkey home | 121 500,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Christopher - detailed file
House plan Christopher - detailed file - mirror
