Usable area: 121.63 m2 / The cost of the realization: 112 600 EUR
Show mirror image
Price: 970 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (10) Detailed drawings
List of materials
Comments (3)

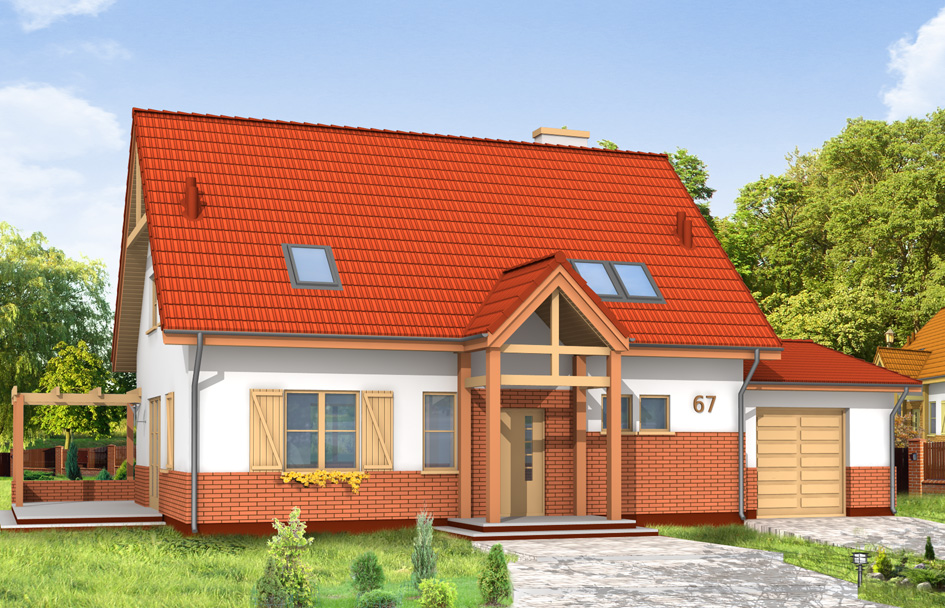

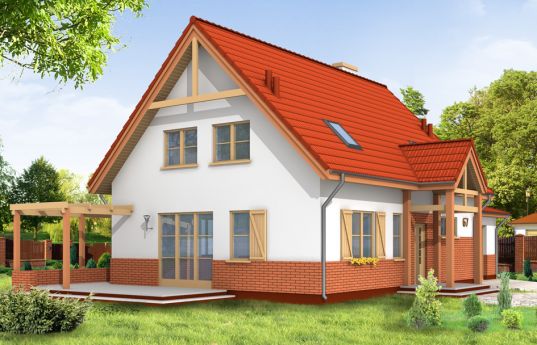

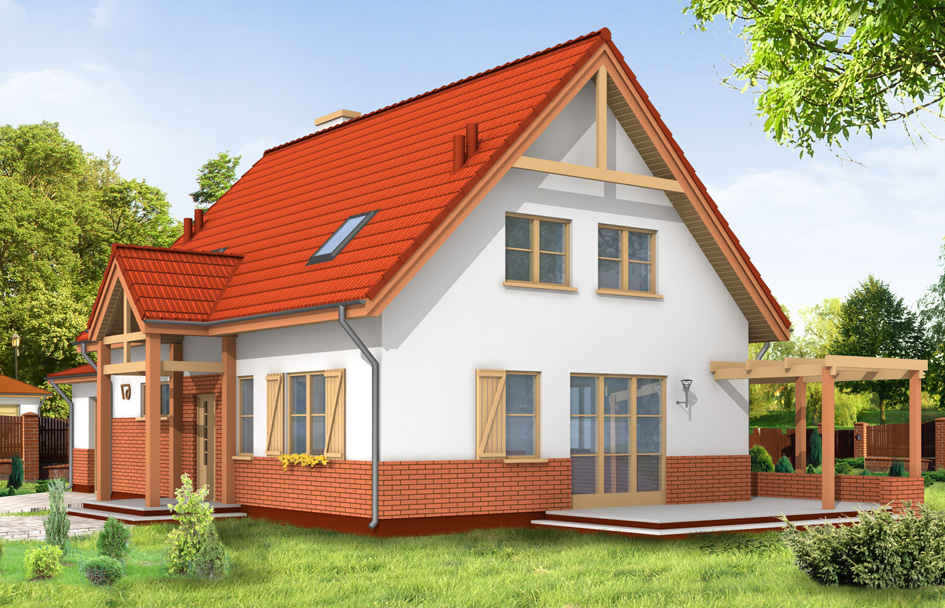

Forest nook house plan is storey house with attic and garage, designed for a family of 4 to 6 people. The building can be set up on a plot with unfavorable sunlight. The architecture of this project refers to the simple, traditional forms and details, in modern perspective. By using natural materials: brick, wood, ceramic tiles - the house fits perfectly in the surroundings. The interior of the house has a semi-open layout - living room connects to the hall and a terrace. On the ground floor there are moreover: room (office or bedroom), utility room, toilet with shower and a garage. In the attic there are three comfortable bedrooms, a bathroom and a dressing room. Forest nook house plan is also available in a mirror versions.
Specifications:
- Cubature: 535 m3 / 18890,85 ft3
- Built-up area: 129,6 m2 / 1394,50 ft2
- Total area: 198,44 m2 / 2135,21 ft2
- Net area: 131,54 m2 / 1415.88ft2
- Usable area: 121,63 m2 / 1309.21 ft2
- Roof area: 209,62 m2 / 2255,51 ft2
- Roof slope: 45 degrees
- Height of the building: 8,30 m (8,60 m with foundation) / 27,22 ft (28,21 ft with foundation)
- Wide of the building: 15,72 m / 51,56 ft
- Length of the building: 8,49 m / 27,85 ft
- Minimum plot width: 22,72 m / 74,52 ft
- Minimum plot length: 17,21 m / 56,45 ft
- Height of rooms: 2,70 m / 8,86 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
-
External walls -
1. airbrick ceramic max + polystyrene + thin-layer plaster
2. airbrick silicate (or erated concrete) + mineral wood + brick - Ceiling - reinforced concrete TERIVA
- Elevation - thin-layer plaster clinker brick
- Roof - tile or meatal roofing tile
The costs of implementing:
| The raw state open | 40 500,00 EUR |
| The raw state closed | 58 300,00 EUR |
| The cost of finishing works | 54 400,00 EUR |
| Execution of turnkey home | 112 600,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Forest nook - detailed file - mirror
House plan Forest nook - detailed file
