Seagull house plan

Usable area: 145.85 m2   /   The cost of the realization: 121 800 EUR

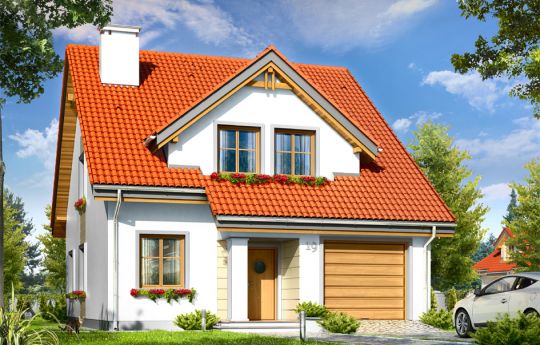

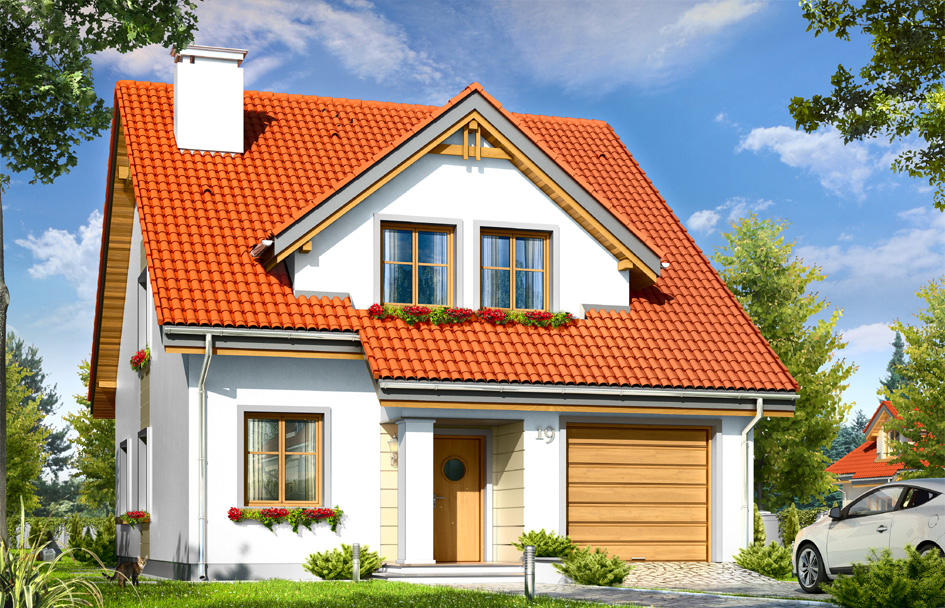

House plan Seagull - front visualization

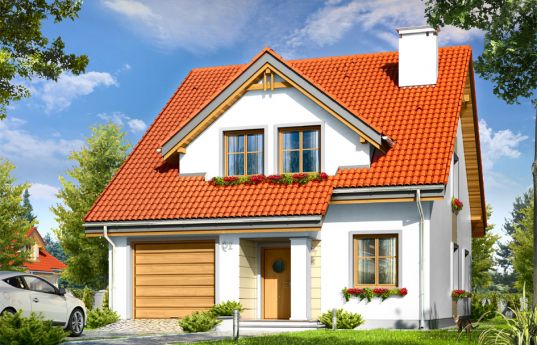

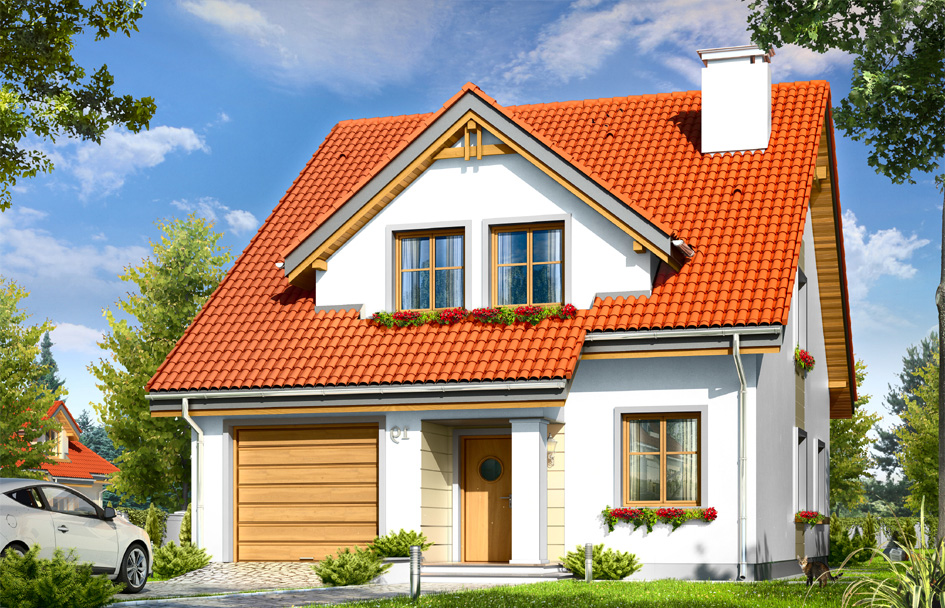

Show mirror image


Seagull is a family house for a family of 4 to 5 people. This project combines traditional solid appearance, unpretentiousness, simplicity of design, functionality and clarity of the interior. Seagull house thanks to a compact block, built on a rectangular plan, is energy efficient, easy and inexpensive to build. Thanks to a fairly narrow front facade will fit on a plot with a width of only 16 meters. The building can be easily converted into a duplex or row house. A simple structural system --storey block with an attic covered by gable roof - it should not make trouble any building team. The correct ratio of the surface building envelope to the obtained cubic volume favors the energy efficiency of the building. Exterior appearance of Seagull house perfectly fit into the suburbs of neighboring buildings. The facades diversified large dormers in gable roof, protruding slightly garage with arcade entrance and - from behind - roof of terrace on which we can go from the living room by a nice glass door. The interior of the house is divided into a living area, and utility area on the ground floor and bedrooms in the attic. On the ground floor a very nice undivided interior was planned comprising of living room and dining room, kitchen and hall. The kitchen is open to the living room - it can be easily separated by a partition wall. Other rooms on the ground floor is a convenient garage with storage under the stairs, boiler room, bathroom and porch. In the attic we can find four very nice, easy to arrange bedrooms, and a bathroom. The interior can be modified by moving partition walls - leaving, for example, three bedrooms and adding another bathroom and a walk-in closet for parents. Above the attic it is still a nice loft, which can also be adapted. The house is designed for customers looking for a simple design, no frills, wanting to "squeeze" as much space for reasonable money. There is also available a mirror version of Seagull house.

Specifications:
  • Cubature: 846 m3 / 29872,26 ft3
  • Built-up area: 120,29 m2 (with arcades: 129,18 m2) / 1294,32 ft2 (with arcades: 1389,98 ft2)
  • Total area: 219,47 m2 / 2361,50 ft2
  • Net area: 152,91 m2 + garage 22,5 m2 / 1645,31 ft2 + garage 242,10 ft2
  • Usable area:
    • 145,85 m2 wg PN-70/B-02365 / 1569,35 ft2 wg PN-70/B-02365
    • 152,91 m2 + garage wg PN-ISO 9836:1997 / 1645,31 ft2 + garage wg PN-ISO 9836:1997
  • Roof area: 202,14 m2 / 2175,03 ft2
  • Roof slope: 38 degrees
  • Height of the building: 9,14 m (9,45 m with foundation) / 29,98 ft (30,99 ft with foundation)
  • Wide of the building: 9,16 m / 30,04 ft
  • Length of the building: 13,86 m / 45,46 ft
  • Minimum plot width: 16,16 m / 53,00 ft
  • Minimum plot length: 22,46 m / 73,67 ft
  • Height of rooms: 2,7 i 2,6 m / 8,86 and 8,53 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  Teriva
  • Roof - tile
  • Elevation - thin-layer plaster on polystyrene






The costs of implementing:
The raw state open 48 400,00 EUR
The raw state closed 79 200,00 EUR
The cost of finishing works 42 600,00 EUR
Execution of turnkey home 121 800,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Seagull - detailed file

House plan Seagull - detailed file - mirror
