Usable area: 168.15 m2 / The cost of the realization: 147 100 EUR
Show mirror image
Price: 1040 EUR
Description
Plans
Elevations
Situations
Animation Variants (1)
Realizations (57) Detailed drawings
List of materials
Comments (3)

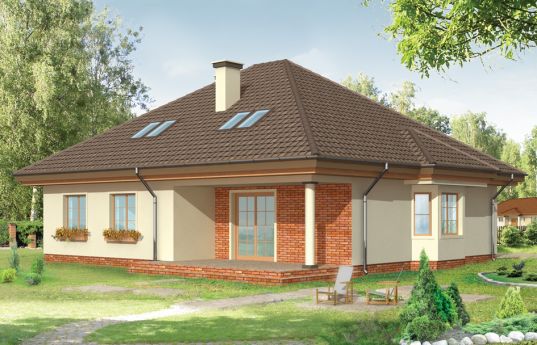

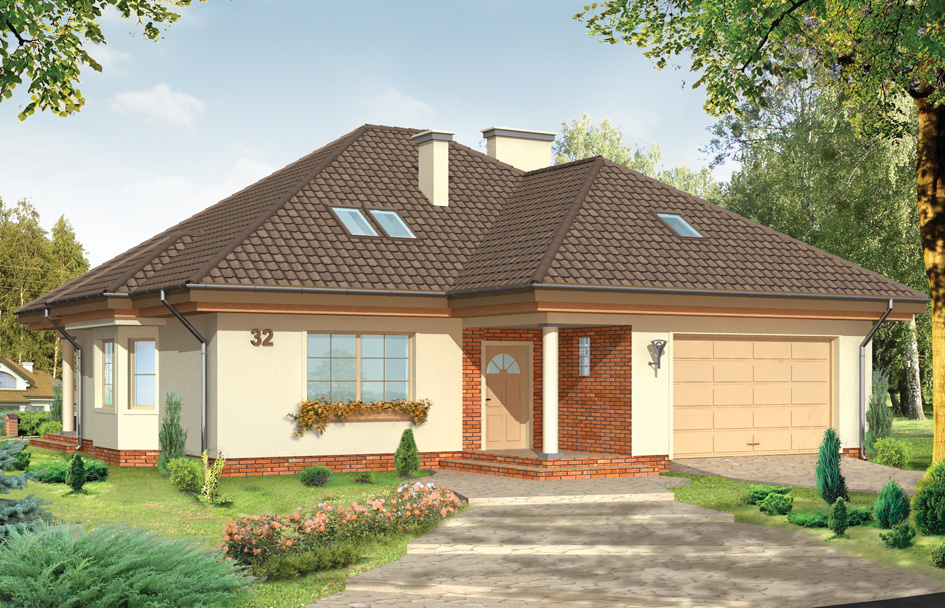

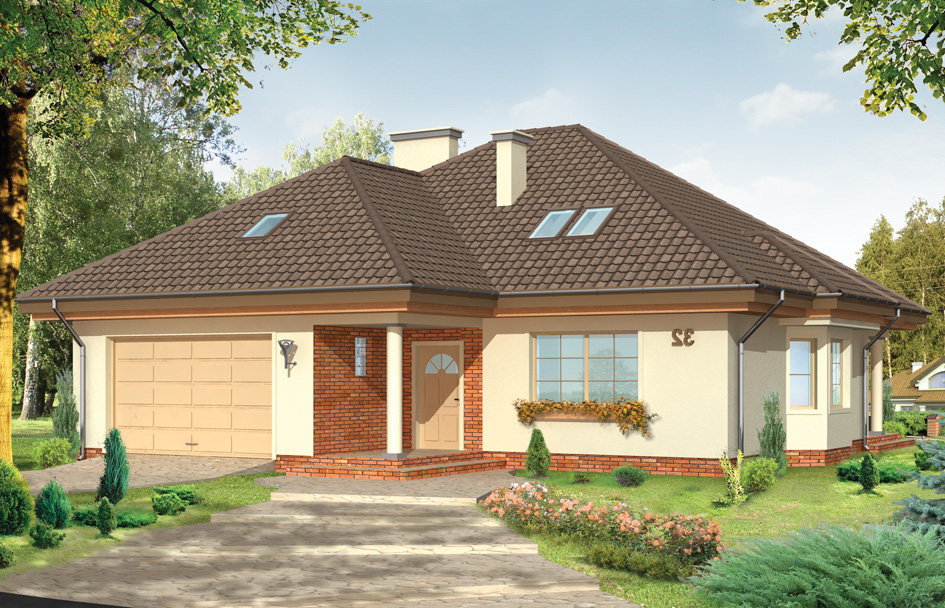

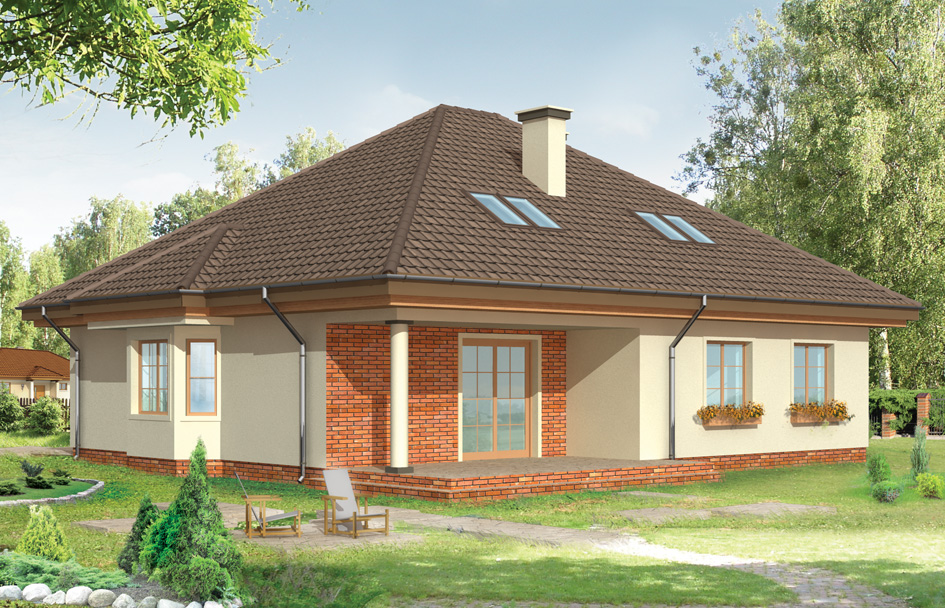

Natalie house is comfortable, spacious family house for a family of two or three generations. Natalie house has an envelope roof, arcades, bay window and clinker cladding form a successful combination. The interior of the house is designed so that the first stage could be disposed only the ground floor. Rooms on the ground floor can be a bedroom and parents office, grandparents bedroom or guest rooms. Loft can be finished in the second stage. There is also a mirror version of the Natalie house plan.
Specifications:
- Cubature: 713 m3 / 25176,03 ft3
- Built-up area: 177,05 m2 / 1905,06 ft2
- Total area: 246,11 m2 / 2648,14 ft2
- Net area: 175,65 m2 + garage / 1889,99 ft2 + garage
-
Usable area:
- 168,15 m2 wg PN-70/B-02365 / 1809,29 ft2 wg PN-70/B-02365
- 175,65 m2 + garage wg PN-ISO 9836:1997 / 1889,99 ft2 + garage wg PN-ISO 9836:1997
- Roof area: 312 m2 / 3357,12 ft2
- Roof slope: 33 degrees
- Height of the building: 8,06 m (8,41 m with foundation) / 26,4368 ft (27,5848 ft with foundation)
- Wide of the building: 14,48 m / 47,49 ft
- Length of the building: 15,3 m / 50,18 ft
- Minimum plot width: 22,48 m / 73,73 ft
- Minimum plot length: 23,3 m / 76,42 ft
- Height of rooms: 2,75 m / 9,02 ft
Materials:
- Foundations – concrete
- Walls - Ytong brick
- Ceiling - Teriva
- Roof - tile or meatal roofing tile
The costs of implementing:
| The raw state open | 54 000,00 EUR |
| The raw state closed | 76 300,00 EUR |
| The cost of finishing works | 70 900,00 EUR |
| Execution of turnkey home | 147 100,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Natalie - detailed file
House plan Natalie - detailed file - mirror
Related Projects
2012.03.11 0
I wonder about the purchase this project, but I want to set up solar panels, whether it is possible in this house?
Hello. In this house you can easily install the solar system - you can buy it from us as the addition to the basic version the package of solar installation. MG
2012.03.10 0
Hello I have a question, if anyone already put raw state of this house? I would like to assess the size of the house in live before buying the same.
2012.02.08 0
Hi all, I see that this hause plan is very popular, I also chose this one and I do not regret the cottage is very cool and functional. Regards.
