Saga house plan

Usable area: 143.14 m² / The cost of the realization: 125 700 EUR

Show mirror image

Price: 970 EUR

Order the project! Add to briefcase

Description Plans Elevations Situations Animation Interiors Variants (0) Realizations (28) Detailed drawings List of materials Comments (3)

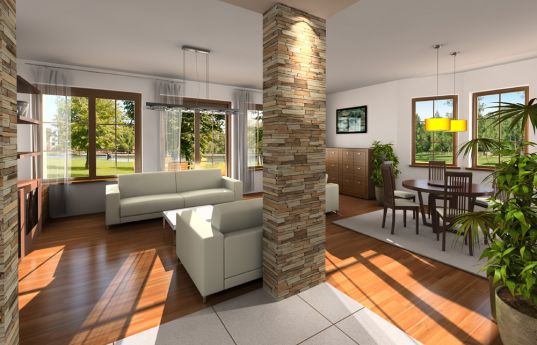

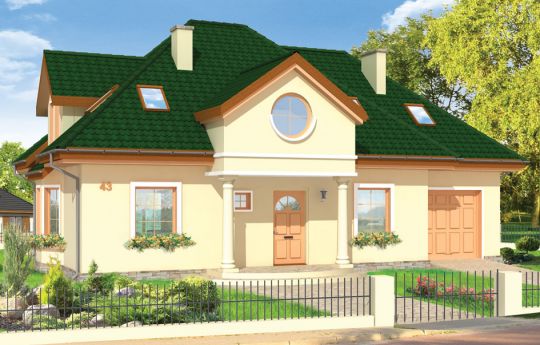

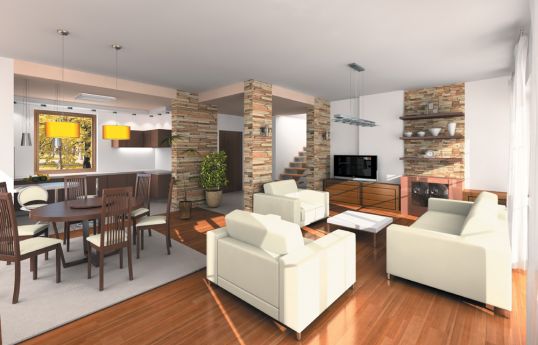

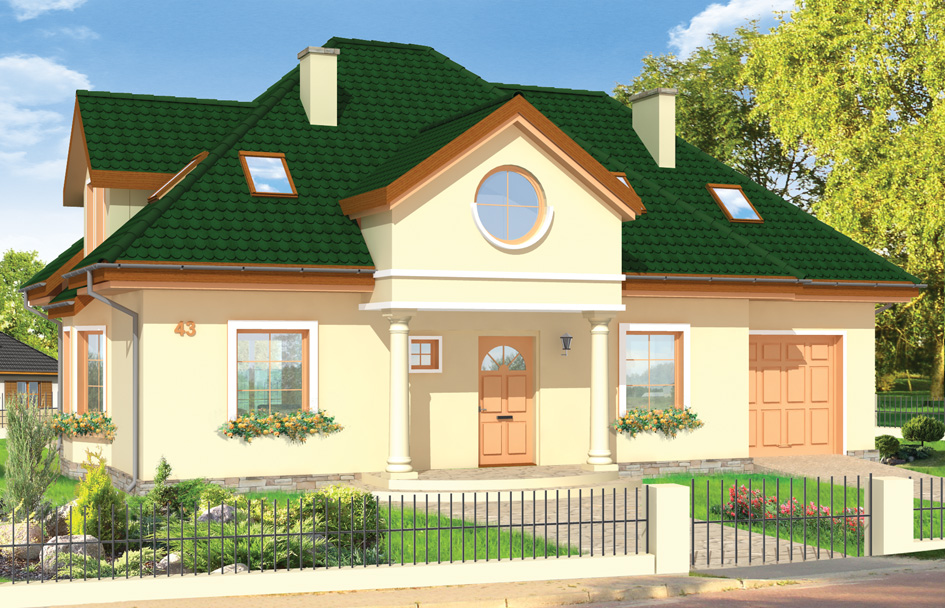

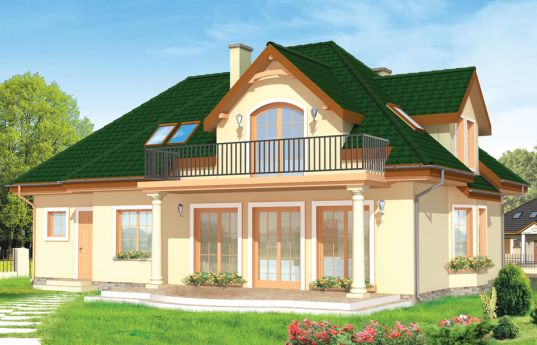

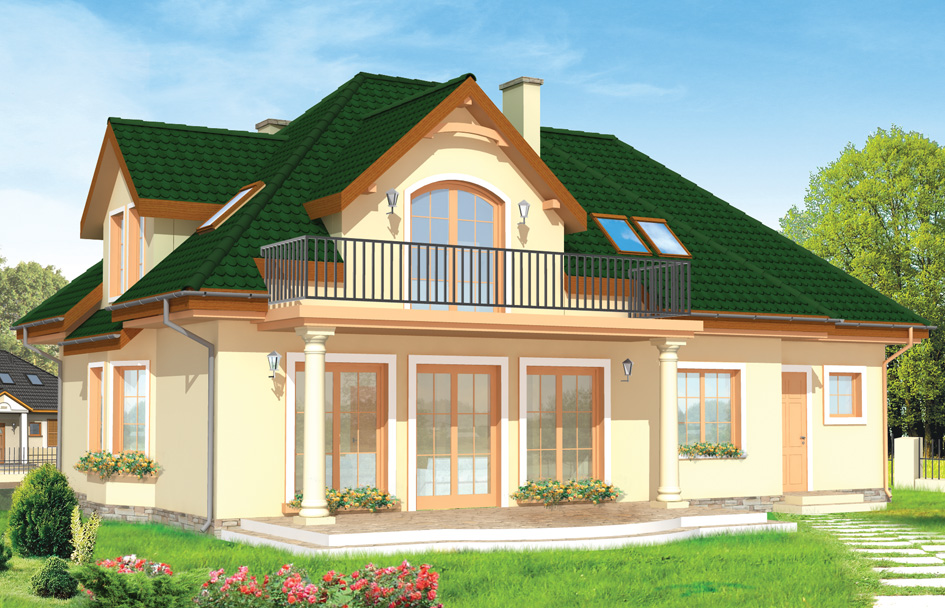

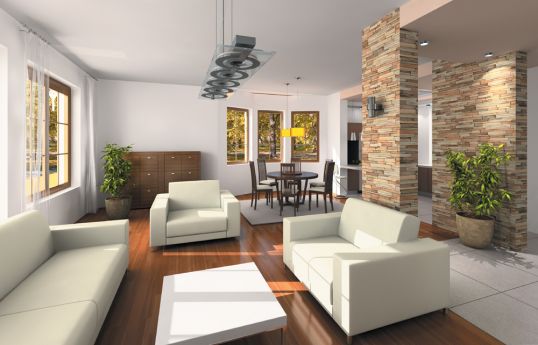

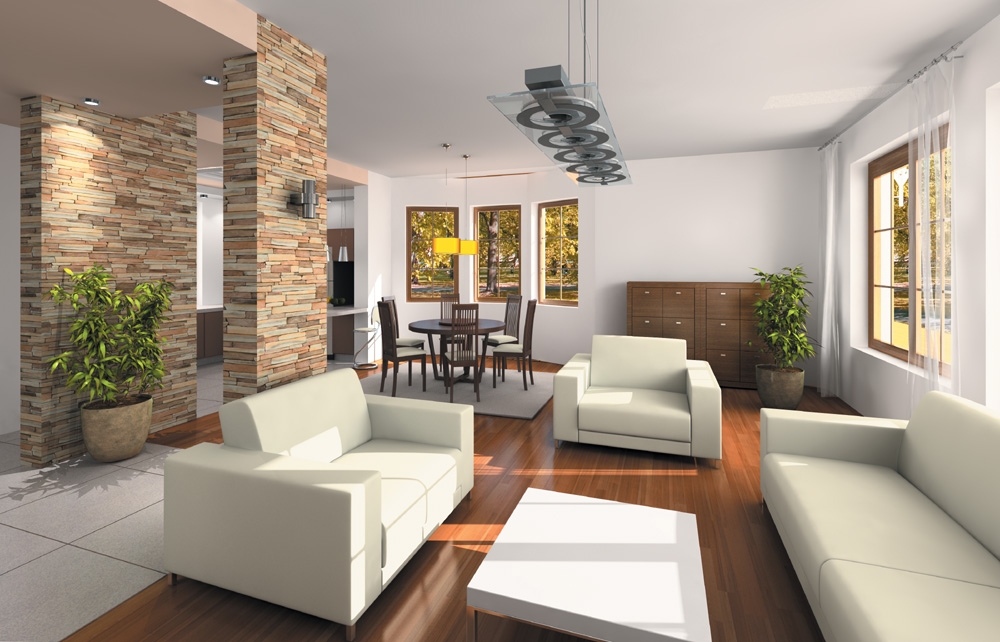

Saga house plan is a building of classic architecture, referring to the Polish manor house. This is a detached house for a family of 4-5 people. The project has a hipped roof attached to the dormer windows, the original entrance portico with columns and a circular window give the block a curious expression. Details - such as the dining room bay window, large balcony with arcade from the garden diversified whole. Inside the house was designed spacious living room with dining area accented by gentle bay window. House has large glazing which the interior opening to the terrace and garden. Partially open kitchen with hall increase the surface area. On the ground floor there also was designed an extra room, garage and boiler room. In the attic there are three bedrooms with wardrobes and a bathroom. In addition, the project gives the possibility of utilizing the attic above the garage for the room. There is also available mirror version of this house plan.

Specifications:

Cubature: 623 m³ / 21998,13 ft³
Built-up area: 131,33 m² / 1413,11 ft²
Total area: 219,53 m² / 2362,14 ft²
Net area: 185,1 m² / 1991,68 ft²
Usable area: 143,14 m²+ garage / 1540,19 ft² + garage
Roof area: 226,8 m² / 2440,37 ft²
Roof slope: 42 degrees
Height of the building: 8,13 m (8,45 m with foundation) / 26,65 ft (27,7 ft with foundation)
Wide of the building: 15,21 m / 49,89 ft
Length of the building: 10,65 m / 34,93 ft
Minimum plot width: 22,21 m / 72,85 ft
Minimum plot length: 19,29 m / 63,27 ft
Height of rooms: 2,80 m / 9,18 ft

Materials:

Foundations – concrete
External walls -bilayer wall aerated concrete 24 cm + polystyrene or mineral wool
Ceiling - Teriva
Roof - ceramic tile

The costs of implementing:

The raw state open	44 300,00 EUR
The raw state closed	66 700,00 EUR
The cost of finishing works	59 100,00 EUR
Execution of turnkey home	125 700,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

Saga - kosztorys

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Saga - detailed file

House plan Saga - detailed file - mirror

Comment

Jolka_456
2012.03.23 0 Pozytywny komentarz

This house is terrific. More than six months we were looking for a home that would meet while in 80% our expectations, this project turned out to be the fulfillment of our needs in 100%, we cannot believe it :)

Korduszewski Piotr
2012.02.15 0 Pozytywny komentarz

I must admit that despite the small area the house has a lot of functions. For me, a very shapely and interesting house plan.

Lilianna Barszczewska
2012.02.14 0 Pozytywny komentarz

I wonder about the purchase this project, but I want to set up solar panels, whether it is possible in this house?

MG Projekt answer
Hello. In this house you can easily install the solar system - you can buy it from us as the addition to the basic version the package of solar installation. MG
