Usable area: 414.96 m2 / The cost of the realization: 295 100 EUR
Show mirror image
Price: 2380 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (0)
Realizations (19) Detailed drawings
List of materials
Comments (3)

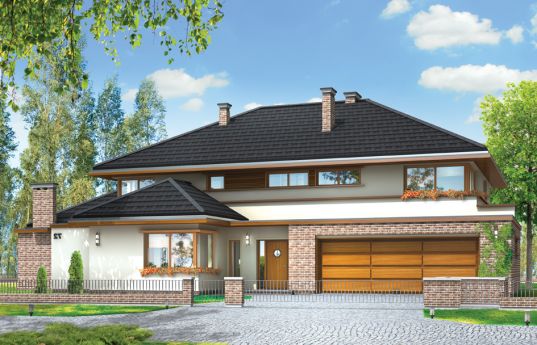

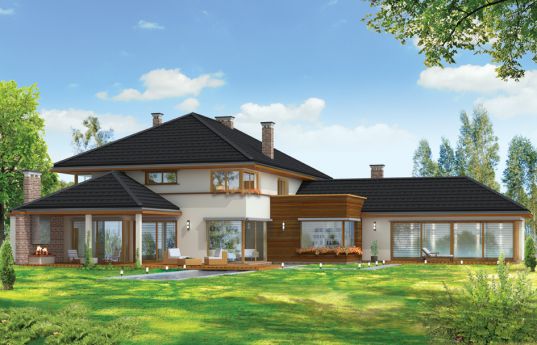

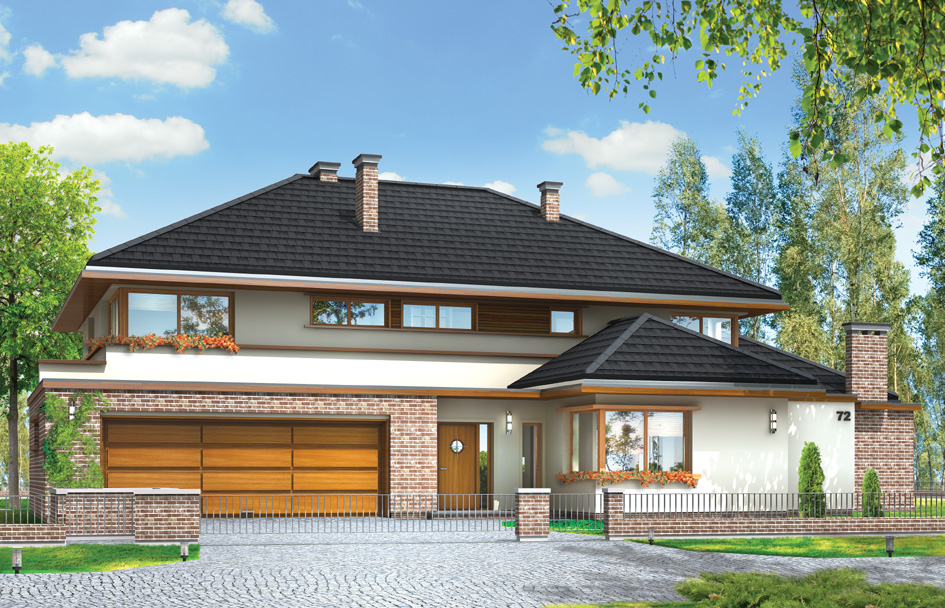

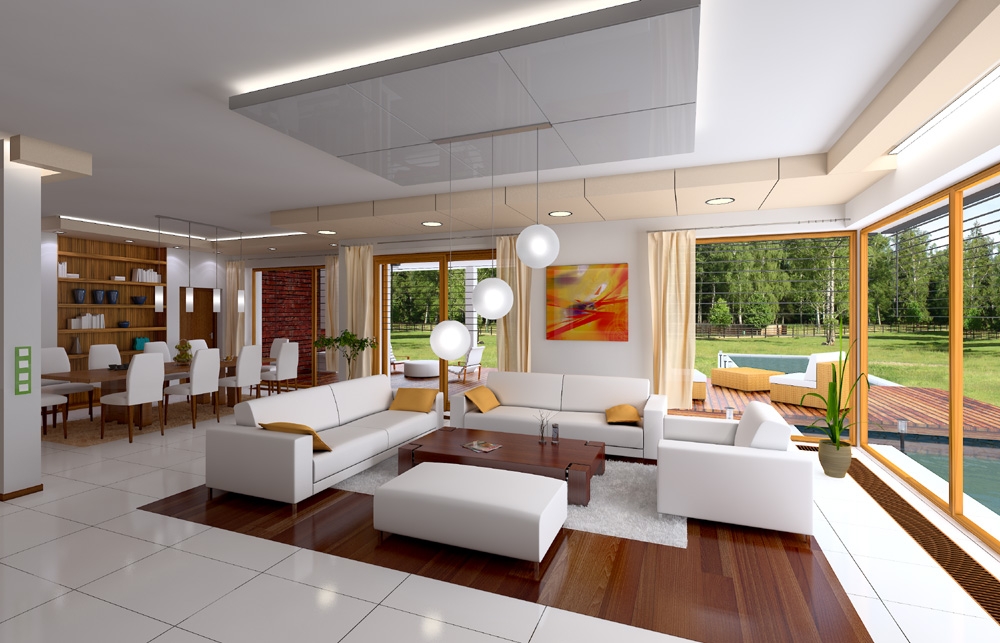

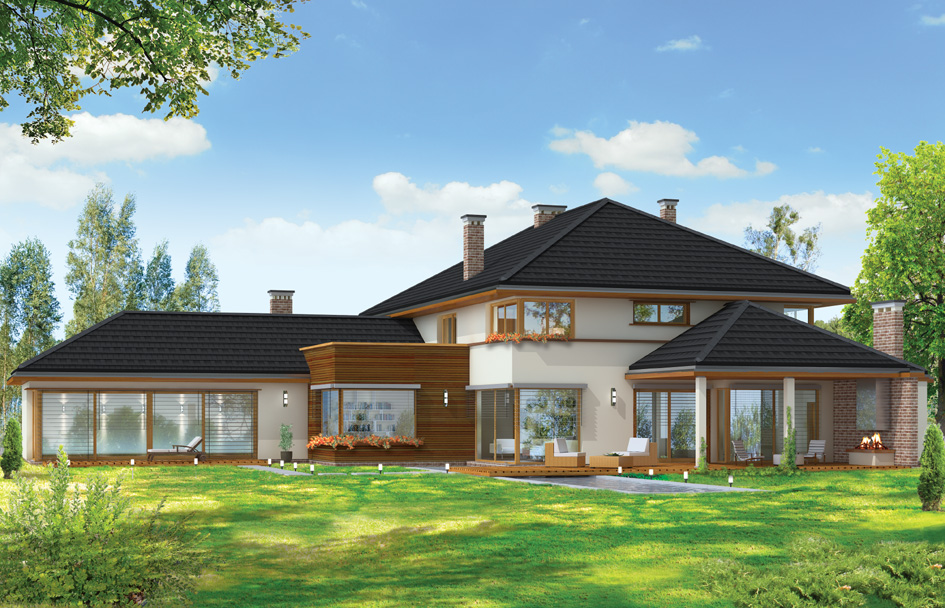

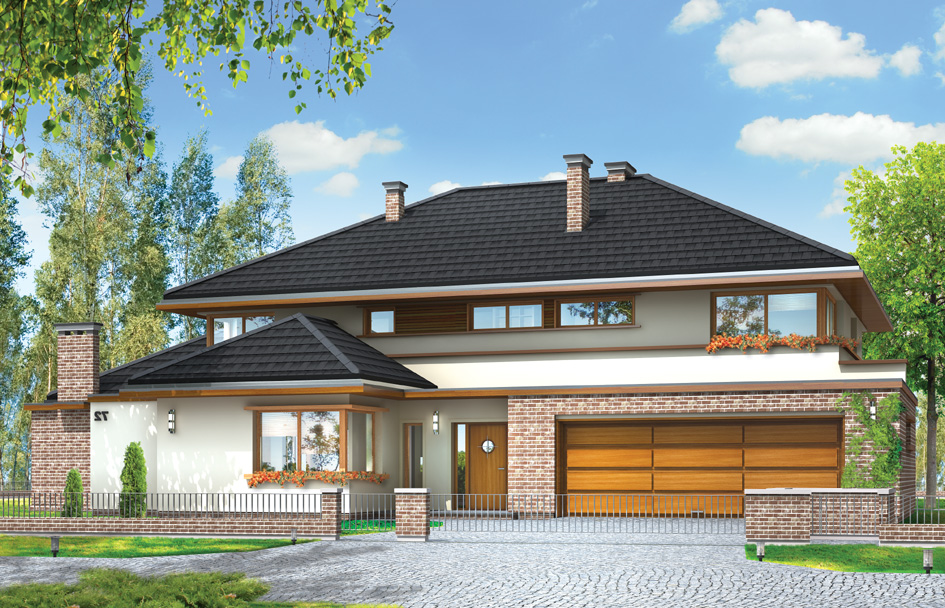

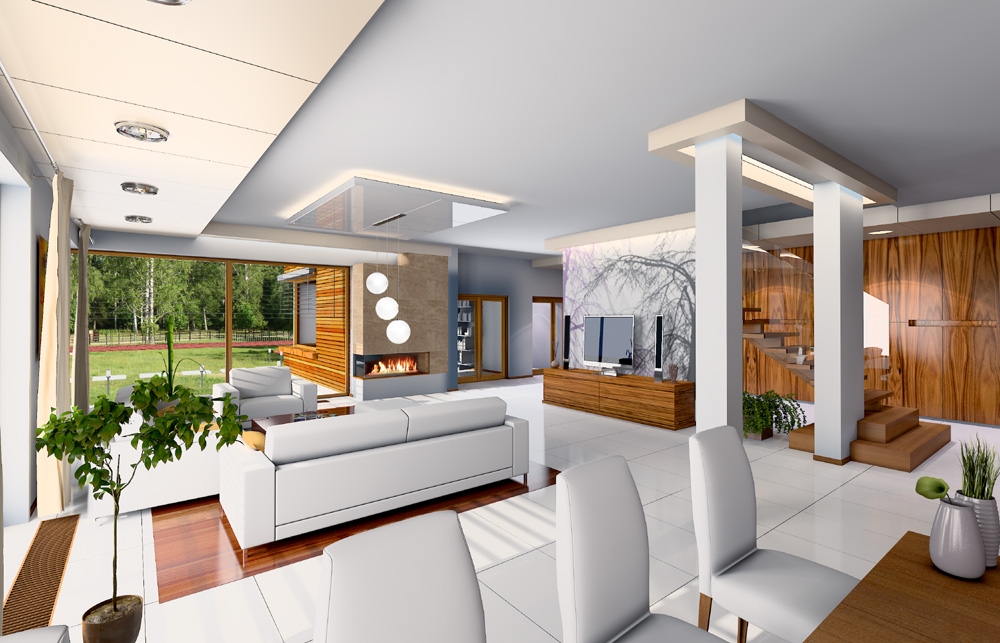

Villa with pool is a large residence for a family of four-of six people. House consists of a compact, one-storey body covered by a hipped roof, built-on two blocks, covered by a hipped roofs. Building is a suburban villa with modern but quiet architecture. Design of the house is interesting thanks to build another garage, large roofed arcade and separate room at the back of the villa. Body of the building has been interestingly decorated by clinker and wooden cladding elevation, loggias and entrance arcades. Massive ornate chimney of internal and external fireplace, and corner windows are additional decorations of solid. On the ground floor for by a vide glazing from living room exit to the large arcade and garden terrace was planned. All elements of the elevation form a cohesive, peaceful in composition whole. There is also available mirror version of this house plan.
Specifications:
- Cubature: 1742 m3 / 61510,02 ft3
- Built-up area: 401,2 m2 / 4316,91 ft2
- Total area: 596,68 m2 / 6420,28 ft2
- Net area: 437,15 m2 + garage / 4703,73 ft2 + garage
- Usable area: 414,96 m2 / 4464,97 ft2
- Roof area: 516,11 m2 / 5553,34 ft2
- Roof slope: 30 degrees
- Height of the building: 9,37 m (9,42 m with foundation) / 30,73 ft (30,90 ft with foundation)
- Wide of the building: 20,03 m / 65,70 ft
- Length of the building: 30,53 m / 100,14 ft
- Minimum plot width: 31,67 m / 103,88 ft
- Minimum plot length: 38,53 m / 126,38 ft
- Height of rooms: 2,8 i 2,75 m / 9,18 and 9,02 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls - aerated concrete + polystyrene + thin-layer plaster
- Ceiling - monolithic plate
- Roof - tile
- Elevation - thin-layer plaster on polystyrene
The costs of implementing:
| The raw state open | 110 100,00 EUR |
| The raw state closed | 158 900,00 EUR |
| The cost of finishing works | 136 300,00 EUR |
| Execution of turnkey home | 295 100,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Villa with pool - detailed file
House plan Villa with pool - detailed file - mirror
