Cheerful 3 house plan

Usable area: 150.1 m² / The cost of the realization: 116 800 EUR

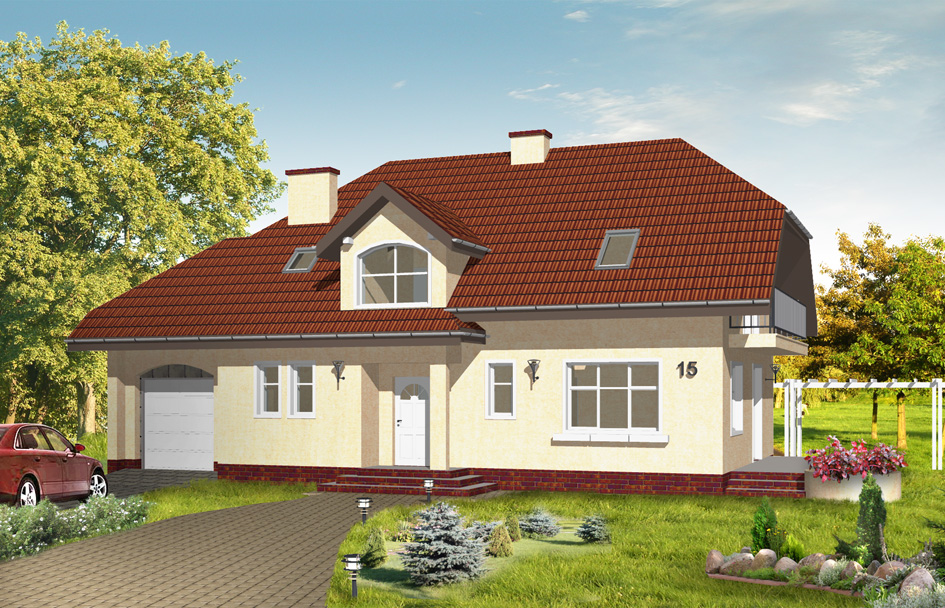

House plan Cheerful 3 - front visualization

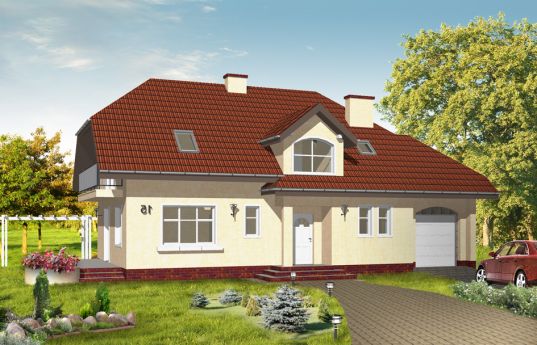

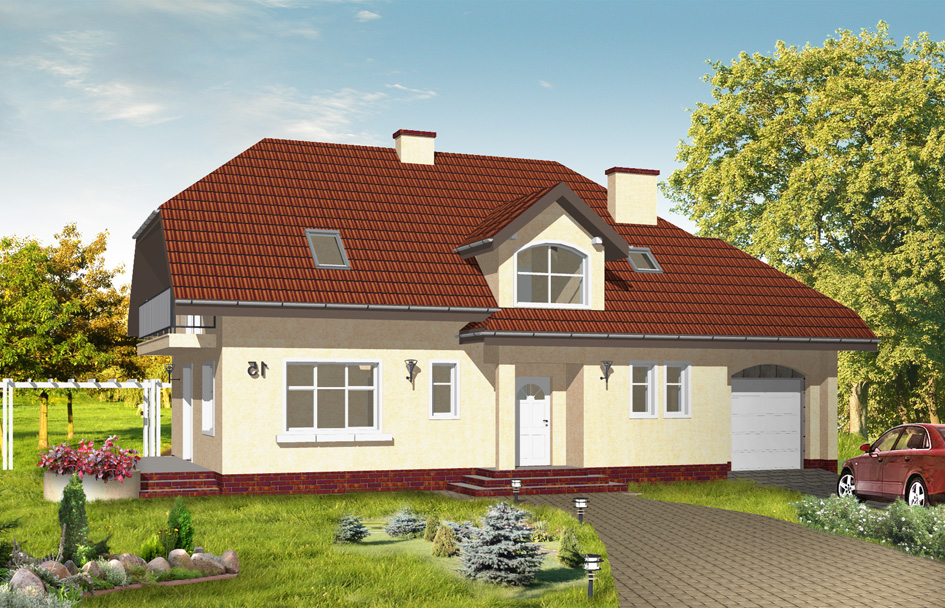

Show mirror image

Price: 900 EUR

Description Plans Elevations Situations Variants (0) Realizations (1) Detailed drawings List of materials Comments (3)

Cheerful 3 house plan is a representative villa with a garage, for a family of four-five people. The house has been planned in such way to fit well on a narrow plot of land, with a garden from the side. In the interior of the ground floor are: large kitchen with dining area, spacious living room with fireplace in the middle of the house, shapely lobby with comfortable stairs. In the attic three large bedrooms, bathroom, lounge with kitchenette and a loft above the garage, which can be used as an extra room was designed. Cheerful 3 house plan is also available in a mirror version.

Specifications:

Cubature: 640 m³ / 22598,4 ft³
Built-up area: 125,3 m² / 1348,23 ft²
Total area: 220,69 m² / 2374,62 ft²
Net area: 184,95 m² / 1990,06 ft²
Usable area: 150,1 m² / 1615,08 ft²
Roof area: 264 m² / 2840,64 ft²
Roof slope: 42 degrees
Height of the building: 8,09 m (8,59 m with foundation) / 26,53 ft (28,17 ft with foundation)
Wide of the building: 15,6 m / 51,17 ft
Length of the building: 9 m / 29,52 ft
Minimum plot width: 23,6 m / 77,41 ft
Minimum plot length: 17 m / 55,76 ft
Height of rooms: 2,70 m / 8,86 ft

Materials:

Foundations – poured concrete
External walls – brick walls - aerated concrete + polystyrene
Ceiling - reinforced concrete Teriva
Elevation - thin-layer plaster
Roof - tile or meatal roofing tile

The costs of implementing:

The raw state open	38 600,00 EUR
The raw state closed	58 700,00 EUR
The cost of finishing works	58 200,00 EUR
Execution of turnkey home	116 800,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

Pogodny 3 - zestawienie materiałowe

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Cheerful 3 - detailed file - mirror

House plan Cheerful 3 - detailed file
