Usable area: 95.53 m2 / The cost of the realization: 101 900 EUR

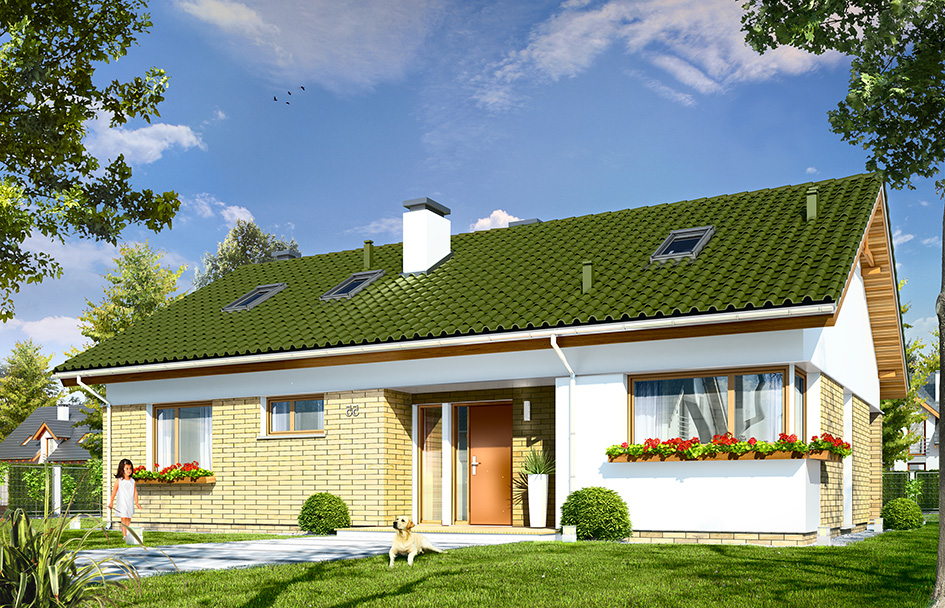

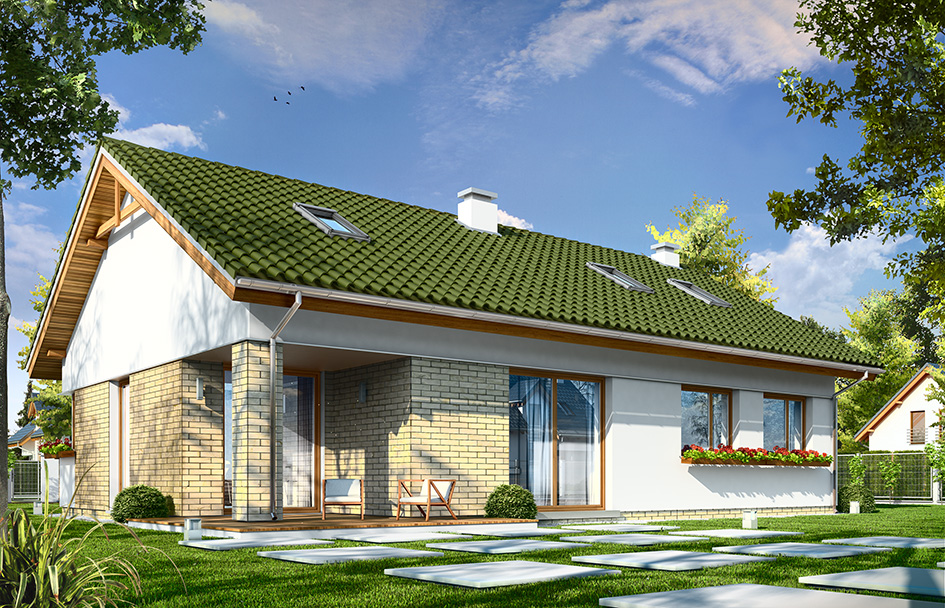

Show mirror image
Price: 940 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Detailed drawings
List of materials
Comments (3)

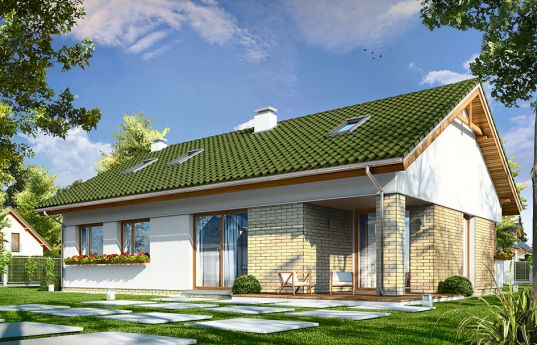

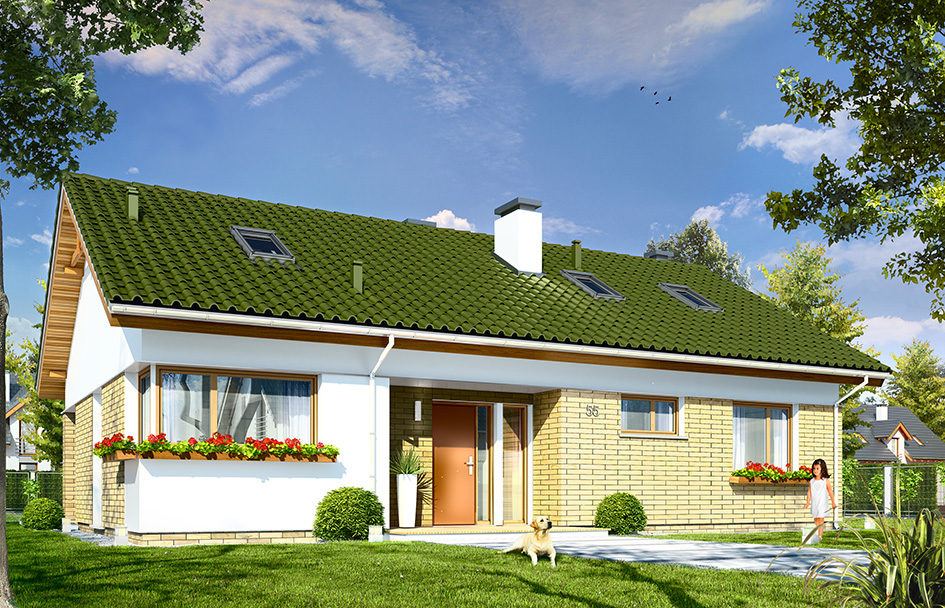

House plan Olive 2 is the next version of the project Olive - this time with a concrete ceiling above the ground floor and attic which can be adapt to the usable attic. This bungalow can be in a very easy way increased almost about 40 percent. In the attic you can successfully accommodate two additional bedrooms and a bathroom. The project is alternatively solved attic / loft: basic variant Olives 2 "A" has a single-space in the attic to any development, a variant "B" has a loft consisting of an additional two rooms with private bathroom (additional area of the attic is 34.77 m2). The house has a very simple form, built on a rectangular plan, covered with a gable roof. Curiously arranged windows, wall cladding, arcades and niches give the building a dynamic modern appearance, proving that story house can also be interesting. All necessary facilities are located on the ground floor: large day part, with a living room, hall, dining area and kitchen, and three bedrooms with bathrooms. Good insulation of partitions increase the energy efficiency of the building. In connection with ventilation with recuperation house will be very economical in the future exploitation. You can replace a gas boiler for solid fuel boiler. Olive 2 is a house designed for the developmental family, which will maybe needed in the future, additional space (the attic). Alternatively, it is a proposition for investors who wish to have an additional space for storage outside the living quarters. Olive 2 will fit perfectly in any environment. This house plan does not require a large plot. The building is unpretentious, it has logically designed interior.
Specifications:
- Cubature: 601 m3 / 21221,31 ft3
- Built-up area: 128,04 m2 (with arcades: 137,23 m2) / 1377,71 ft2 (with arcades: 1476,59 ft2)
- Total area: 128,04 m2 / 1377,71 ft2
- Net area: 98,38 m2 + (* version with attic + 34,77 m2) / 1058,57 ft2 + (* version with attic + 374,13 ft2)
-
Usable area:
- 95,53 m2 wg PN-70/B-02365 (* version with attic + 34,77 m2) / 1027,90 ft2 wg PN-70/B-02365 (* version with attic + 374,13 ft2)
- 98,38 m2 + garage wg PN-ISO 9836:1997 (* version with attic + 34,77 m2) / 1058,57 ft2 + garage wg PN-ISO 9836:1997 (* version with attic + 374,13 ft2)
- Roof area: 194,05 m2 / 2087,98 ft2
- Roof slope: 30 degrees
- Height of the building: 6,38 m (6,58 m with foundation) / 20,93 ft (21,58 ft with foundation)
- Wide of the building: 14,19 m / 46,54 ft
- Length of the building: 9,76 m / 32,01 ft
- Minimum plot width: 22,19 m / 72,96 ft
- Minimum plot length: 17,76 m / 58,25 ft
- Height of rooms: 2,6 m / 8,53 ft
Materials:
- Fundamenty - betonowe ławy i ściany fundamentowe z bloczków betonowych
- External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
- Ceiling - Teriva
- Elevation - thin-layer plaster on polystyrene
- Roof - tile
The costs of implementing:
| The raw state open | 39 200,00 EUR |
| The raw state closed | 55 400,00 EUR |
| The cost of finishing works | 46 500,00 EUR |
| Execution of turnkey home | 101 900,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Olive 2 - detailed file
House plan Olive 2 - detailed file - mirror
