Under the oaks house plan

Usable area: 150.89 m2   /   The cost of the realization: 132 900 EUR

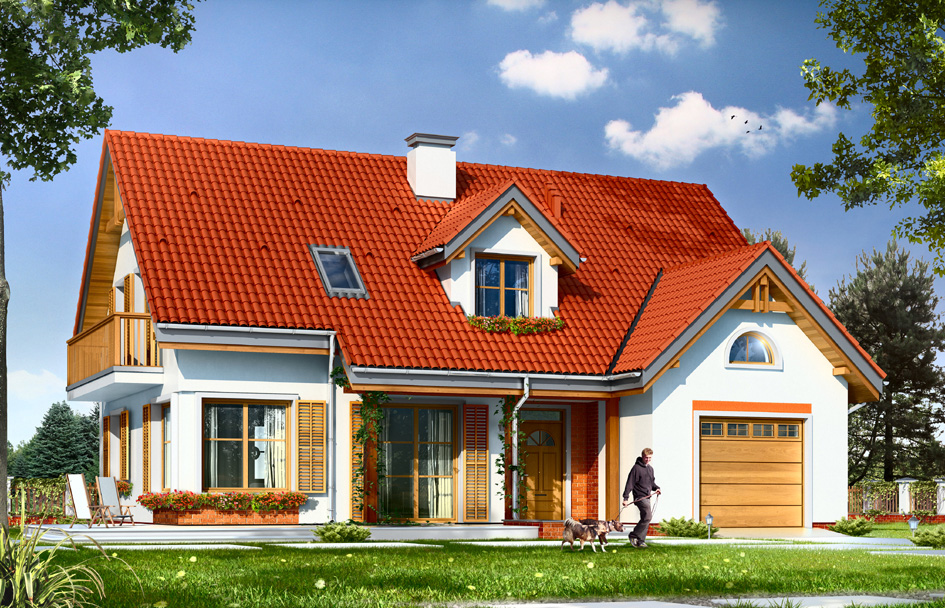

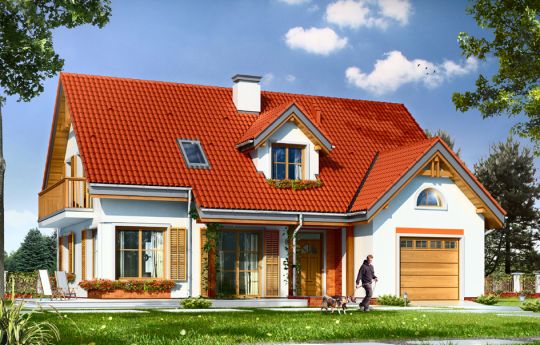

House plan Under the oaks - front visualization

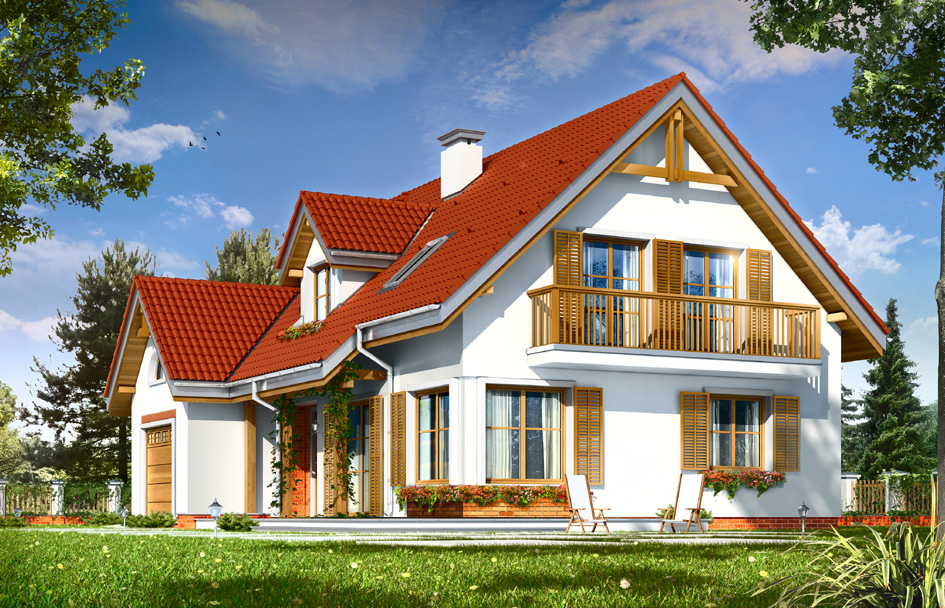

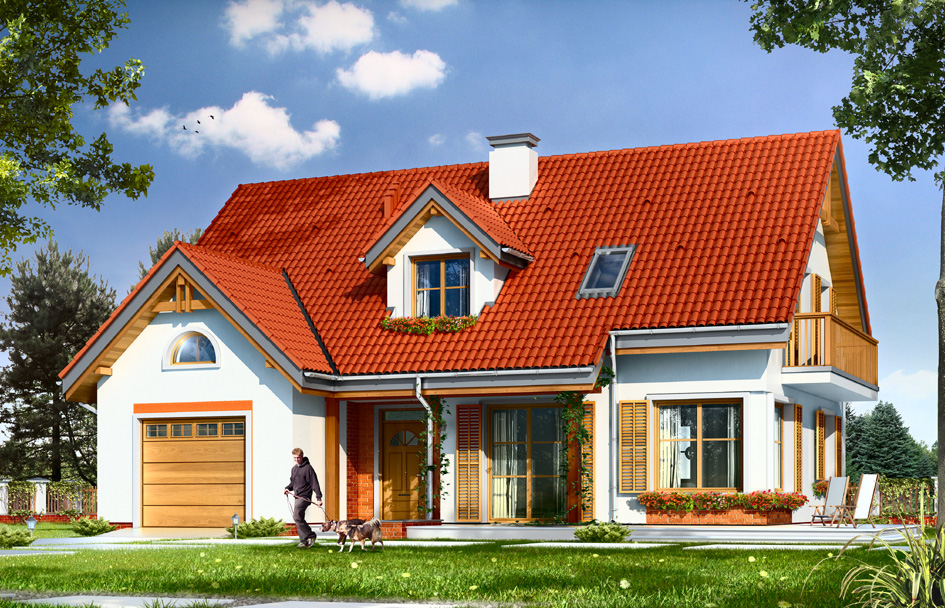

Show mirror image


Under the oaks house plan a charming detached house, designed for a family of 4 to 5 people. House has been designed in such a way that it will also fit to a plot of unfavorable arrangement of the garden and entry in relation to the world side - especially in the plot with entrance from the south. This is a storey building, with attic, covered by a gable roof with dormers on the front and rear. Ground floor plan takes the form of the letter "T", with an essential rectangular portion and protruding extensions: garage and an extra room on the ground floor. Quiet traditional architecture of the house, with lots of wood elements and red roof tiles and cladding clinker, create a cozy atmosphere appeal to the pre-war villa. Nice glazing windows and doors diversified the facade, and at the same time open up the interior of the surrounding garden. The house, thanks to a fairly simple block, it is easy to build, and will also be inexpensive to maintain. Architectural details used in the project, as dormers, arched windows, arcades supported on wooden pillars - all these elements fit together and form a coherent whole. Interior of house is divided into two parts: on the ground floor we have a living area and utility room and garage and in the attic part we have bedrooms and bathrooms. We enter the house through a convenient porch, connected the transition from the garage and boiler room. From the hall plan leads us to the sides: to the day area - with a living room, dining room and kitchen, and an extra room - office or guest bedroom, and a bathroom. From the living room patio doors we get out to the covered terrace by the beautiful corner window we can admire the garden, located in front or on side of the house. An elegant staircase lead us to the attic, and there you will find three comfortable bedrooms, including parents' bedroom with a separate bathroom (actually bath room) and dressing room, and bedrooms for children with a second bathroom. Rooms in the attic, despite slants are very spacious and comfortable. There is also available mirror version of this house plan.

Specifications:
  • Cubature: 781 m3 / 27577,11 ft
  • Built-up area: 133,01 m2 ( with arcades: 143,13 m2) / 1431,19 ft2 ( with arcades: 1540,08 ft2)
  • Total area: 218,92 m2 / 2355,58 ft2
  • Net area: 156,89 m2 + garage 22,67 m2 / 1688,14 ft2 + garage 243,93 ft2
  • Usable area:
    • 150,89 m2 wg PN-70/B-02365 / 1623,58 ft2 wg PN-70/B-02365
    • 156,18 m2 + garage wg PN-ISO 9836:1997 / 1680,50 ft2 + garage wg PN-ISO 9836:1997
  • Roof area: 227,70 m2 / 2450,05 ft2
  • Roof slope: 42 degrees
  • Height of the building: 8,23 m (8,55 m with foundation) / 26,99 ft (28,04 ft with foundation)
  • Wide of the building: 13,56 m / 44,48 ft
  • Length of the building: 12,16 m / 39,89 ft
  • Minimum plot width: 21,56 m / 70,72 ft
  • Minimum plot length: 20,16 m / 66,13 ft
  • Height of rooms 2,7 i 2,5 m / 8,86 and 8,2 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  Teriva
  • Roof - ceramic tile
  • Elevation - thin-layer plaster on polystyrene




The costs of implementing:
The raw state open 46 700,00 EUR
The raw state closed 92 500,00 EUR
The cost of finishing works 40 500,00 EUR
Execution of turnkey home 132 900,00 EUR

Net notified costs, do not include VAT


Additions to the project:

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Under the oaks - detailed file

House plan Under the oaks - detailed file - mirror

Comment
Under the oaks house plan 4749 M.K
2013.11.14 0 Pozytywny komentarz Negatywny komentarz

Hi all, I see that this hause plan is very popular, I also chose this one and I do not regret the cottage is very cool and functional. Regards.

Under the oaks house plan 4748 Maciek@
2013.11.11 0 Pozytywny komentarz Negatywny komentarz

Hello I have a question, if anyone already put raw state of this house? I would like to assess the size of the house in live before buying the same.

Under the oaks house plan 4125 Karolina R.
2013.07.04 1 Pozytywny komentarz Negatywny komentarz

I wonder about the purchase this project, but I want to set up solar panels, whether it is possible in this house?

MG Projekt answer
Hello. In this house you can easily install the solar system - you can buy it from us as the addition to the basic version the package of solar installation. MG
